Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: MPA-1050
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 6 months
Payment Terms: T/T
Supply Ability: Five sets in 4 months
Substrate: |
PET,OPP,CPP,Paper,etc. |
Substrate Thickness: |
8μm-50μm |
Winding Tension: |
50 N – 300 N |
Roll Diameter: |
Max. 1500mm |
Substrate Width: |
1000mm-4000mm |
Average Consumption: |
About 160 KVA (depending On Working Conditions) |
PLC: |
Siemens S7-400 |
Winding Speed: |
1-15 M / S |
Color: |
White For Frame |
Warranty: |
12 Months |
Core Components: |
PLC, Engine, Motor, Pump |
Coating: |
Vacuum Coating |
Substrate: |
PET,OPP,CPP,Paper,etc. |
Substrate Thickness: |
8μm-50μm |
Winding Tension: |
50 N – 300 N |
Roll Diameter: |
Max. 1500mm |
Substrate Width: |
1000mm-4000mm |
Average Consumption: |
About 160 KVA (depending On Working Conditions) |
PLC: |
Siemens S7-400 |
Winding Speed: |
1-15 M / S |
Color: |
White For Frame |
Warranty: |
12 Months |
Core Components: |
PLC, Engine, Motor, Pump |
Coating: |
Vacuum Coating |

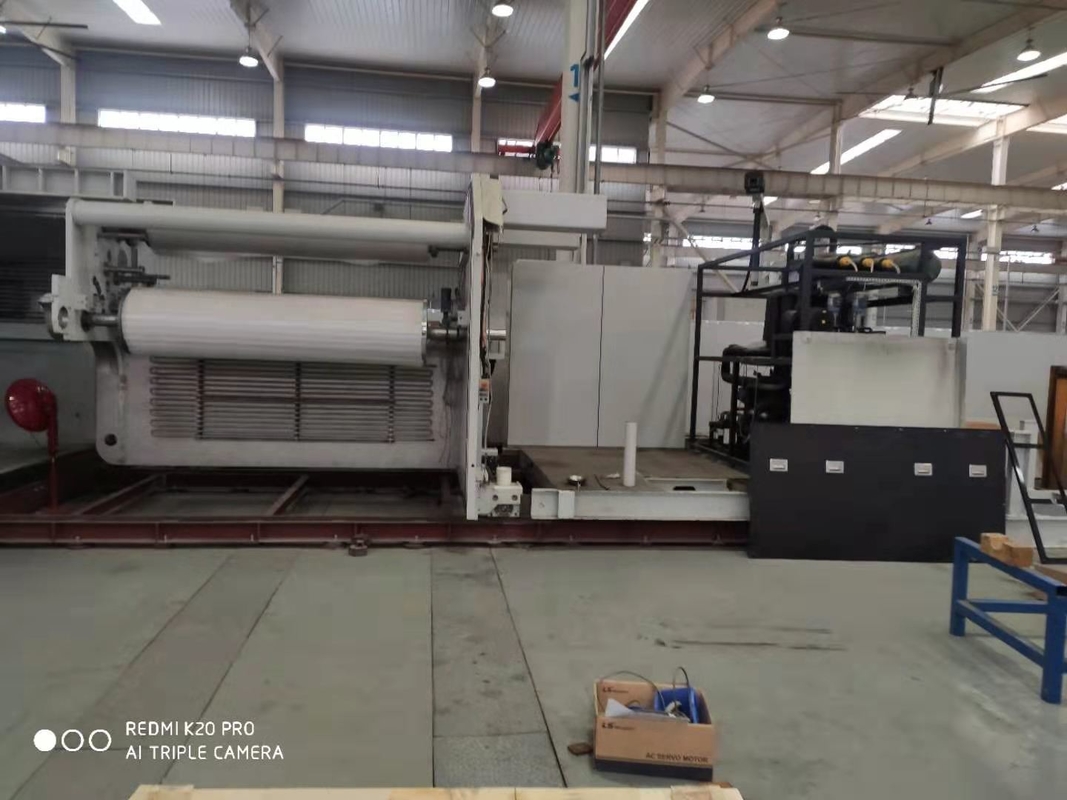

Vacuum Metallizing Machine For High Quality Cigarette Paper Industrial Vacuum Packaging Machine
Product Description
This machine has the features of high pumping speed, large free air capacity, high vacuum degree,small energy consumption, easy operation and maintenance as well as stable performance.
The major usage for the machine is to metallized an Aluminium coating on the roll plastic films such as PET,CPP,OPP,Paper. The main applications of metallized materials are in the fields such as clothing, packaging, security and electronic industry etc.
Technical Data
| Substrate | PET,OPP,CPP,Paper,etc. |
| Substrate Width | 1000mm-4000mm |
| Film thickness | 8μm-50μm |
| Roll diameter | max. 1500 mm |
| Speed | max,1000m/min |
|
PLC system |
Siemens S7-400 series |
| Driving system | Siemens |
| Size | 14m×5.5m×2.8m
|
| Heating method | electric / oil |
Features
HIGH PRECISION WINDING-SYSTEM:
Digital winding electronic, unwinding with transverse oscillation possible.
FIXED EVAPORATOR SYSTEMS FOR:
Thermal evaporator for resistance heated inter metallic composite. Continuous aluminum wire feed system; observation by stroboscope.
Integrated process control system (PLC) with safety interlockings.
Application
Various customers have made decsions for this vacuum metallizing machine serie, the application area of this metalliser is large:
- pharmaceutical packaging,
- tobacco packaing,
- laser film, hot stamping film
- transfer film, dielectric film
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
