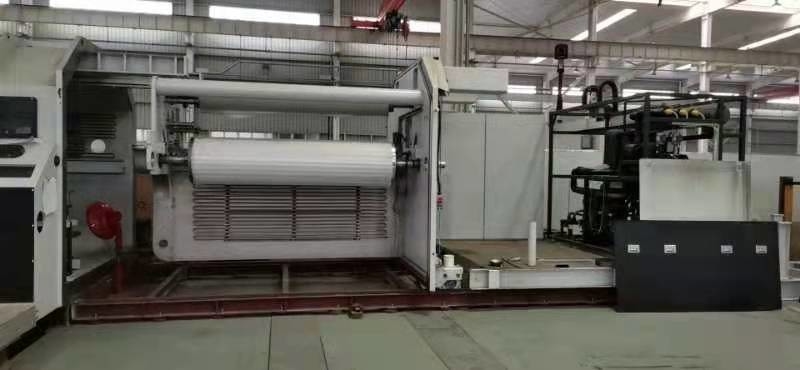

Coating Films 1000m/Min 4000mm Vacuum Aluminizing Machine

Product Details

Place of Origin: China

Brand Name: DST

Certification: SGS

Model Number: MPA-1050

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Based on Specification

Packaging Details: wooden case

Delivery Time: around 4 months

Payment Terms: T/T

Supply Ability: Five sets in 4 months

Get Best Price
Contact Now
Specifications
Highlight:

50N Vacuum Aluminizing Machine

,

DST Vacuum Aluminizing Machine

,

1000mm metalizing machine

Brand:
DST
Substrate:
PET,OPP,CPP,Paper,etc.
Substrate Width:
1000mm-4000mm
Substrate Thickness:
8μm-50μm
Roll Diameter:
Max. 1500mm
Speed:
Max. 1000m/min
Weight:
Around 35 Ton
Coating Speed:
15 M/s
Place Of Origin:
Hefei, China
Coating:
Vacuum Coating
Winding Tension:
50 N – 300 N
Winding Speed:
1-15 M / S
Brand:
DST
Substrate:
PET,OPP,CPP,Paper,etc.
Substrate Width:
1000mm-4000mm
Substrate Thickness:
8μm-50μm
Roll Diameter:
Max. 1500mm
Speed:
Max. 1000m/min
Weight:
Around 35 Ton
Coating Speed:
15 M/s
Place Of Origin:
Hefei, China
Coating:
Vacuum Coating
Winding Tension:
50 N – 300 N
Winding Speed:
1-15 M / S
Description
Coating Films 1000m/Min 4000mm Vacuum Aluminizing Machine

High Productivity Vacuum Metallizer Industrial Vacuum Packaging Machine For Coating Films



Product Description



1)Vacuum chamber:Rectangular vacuum chamber.

2) Performance:High speed,high efficiency.

3) Wingding system:Innovative free span metallizing design,quickly change film roller,more conveninet for maintenance.Multistage spreading system, more smoothly metallizing,better quality;the temperature of coating drum surface is same,better and more uniformity cooling performance,lower metallizing temperature,faster speed.

4) AL evaporation system:Top clamp and staggered form,uniformity evaporation,improve the rate of evaporation,quickly changing the boat,convenient for cleaning . More reliable evaporation system design,lowest fault rate.

5)Control system: Siemens integrated control system,profibus,HMI,Siemens PLC control system. High precision AV servo motor,four roller four motors constant tension winding,the control system is more stable.High precision digital control evaporation.PLC control setp motor feeding aluminum wire.Improve stability and dependability of wire feeding.Ensure the uniformity.

6)Vacuum system:Frequency conversion speed regulation,roots pump group and oil free pumping system,pumping faster,energy saving.Smoothly running in any climate with super coldtrap.





Technical Data



Substrate PET,OPP,CPP,Paper,etc.
Substrate Width 1000mm-4000mm
Film thickness 8μm-50μm
Roll diameter max. 1500 mm
Speed max,1000m/min

PLC system

Siemens S7-400 series
Driving system Siemens
Size 14m×5.5m×2.8m



Heating method electric / oil



Coating Films 1000m/Min 4000mm Vacuum Aluminizing Machine 0Coating Films 1000m/Min 4000mm Vacuum Aluminizing Machine 1Coating Films 1000m/Min 4000mm Vacuum Aluminizing Machine 2



Features



1.Digital PLC Control

2.Single/Double-side Coating

3.Plasma Pre-treatment

4. Pattern Printing

5. Coating Thickness Monitor

6. Accurate Tension Control







Application



Various customers have made decsions for this vacuum metallizing machine serie, the application area of this metalliser is large:

- pharmaceutical packaging,

- tobacco packaing,

- laser film, hot stamping film

- transfer film, dielectric film



Coating Films 1000m/Min 4000mm Vacuum Aluminizing Machine 3

Coating Films 1000m/Min 4000mm Vacuum Aluminizing Machine 4





Packaging & Delivery



1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Coating Films 1000m/Min 4000mm Vacuum Aluminizing Machine 5



Competitive Advantages



1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible  payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.





Our Factory



Coating Films 1000m/Min 4000mm Vacuum Aluminizing Machine 6

Coating Films 1000m/Min 4000mm Vacuum Aluminizing Machine 7





Our customers



Coating Films 1000m/Min 4000mm Vacuum Aluminizing Machine 8



FAQ



Q: Is Dongsheng a factory or trading company?

A: Dongsheng is a factory.



Q:Where is your factory located? Can I visit it before I place an order?

A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.



Q: How about the warranty and after-sale service?

A: We provide 12 months warranty and lifetime technic suport for all machinery.

The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.



Q. Machine installation

A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
