Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: MPA-1050
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: Five sets in 4 months
Substrate: |
PET,OPP,CPP,Paper,etc. |
Substrate Width: |
1000mm-4000mm |
Substrate Thickness: |
8μm-50μm |
Roll Diameter: |
Max. 1500mm |
Weight: |
Around 35 Ton |
Coating Speed: |
15 M/s |
Place Of Origin: |
Hefei, China |
Coating: |
Vacuum Coating |
Winding Tension: |
50 N – 300 N |
Winding Speed: |
1-15 M / S |
Average Consumption: |
About 160 KVA (depending On Working Conditions) |
Size: |
14*5.5*2.8m |
Substrate: |
PET,OPP,CPP,Paper,etc. |
Substrate Width: |
1000mm-4000mm |
Substrate Thickness: |
8μm-50μm |
Roll Diameter: |
Max. 1500mm |
Weight: |
Around 35 Ton |
Coating Speed: |
15 M/s |
Place Of Origin: |
Hefei, China |
Coating: |
Vacuum Coating |
Winding Tension: |
50 N – 300 N |
Winding Speed: |
1-15 M / S |
Average Consumption: |
About 160 KVA (depending On Working Conditions) |
Size: |
14*5.5*2.8m |

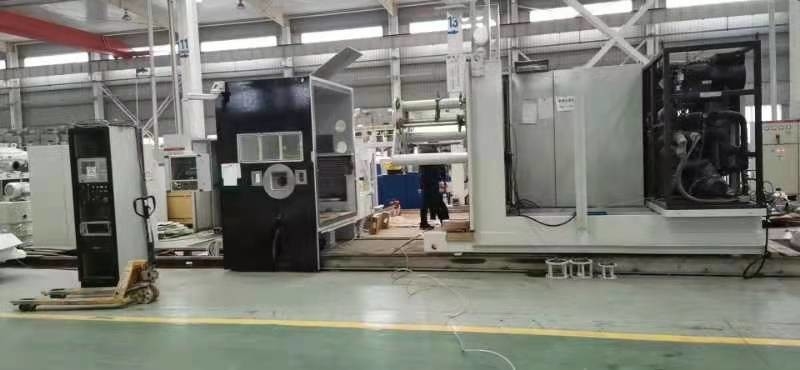

Vacuum Metallizer Machine With New Design Industrial Vacuum Packaging Machine For High Quality Metallized Films
Product Description
With computer network technology control (SIEMENS PLC), remote monitoring, control two graphics display system, the overall control operation, the metallizer machine can work with high stability .
Vacuum system can be build according to user's needs corresponding imports of equipment (such as the United States POLYCOLD , LEYBOLD proliferation of wells pump lights). Full-floating style can also be designed according to user's requirements.
Technical Data
| Substrate | PET,OPP,CPP,Paper,etc. |
| Substrate Width | 1000mm-4000mm |
| Film thickness | 8μm-50μm |
| Roll diameter | max. 1500 mm |
| Speed | max,1000m/min |
|
PLC system |
Siemens S7-400 series |
| Driving system | Siemens |
| Size | 14m×5.5m×2.8m
|
| Heating method | electric / oil |
Features
1.Digital PLC Control
2.Single/Double-side Coating
3.Plasma Pre-treatment
4. Pattern Printing
5. Coating Thickness Monitor
6. Accurate Tension Control
Application
Various customers have made decsions for this vacuum metallizing machine serie, the application area of this metalliser is large:
- pharmaceutical packaging,
- tobacco packaing,
- laser film, hot stamping film
- transfer film, dielectric film
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
