Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: MPA-1050
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: Five sets in 4 months
Brand: |
DST |
Substrate: |
PET,OPP,CPP,Paper,etc. |
Substrate Width: |
1000mm-4000mm |
Substrate Thickness: |
8μm-50μm |
Roll Diameter: |
Max. 1500mm |
Inner Diameter Of Core: |
152 Mm |
Speed: |
Max. 1000m/min |
Weight: |
Around 35 Ton |
Coating Speed: |
15 M/s |
PLC Brand: |
Siemens |
Place Of Origin: |
Hefei, China |
Brand: |
DST |
Substrate: |
PET,OPP,CPP,Paper,etc. |
Substrate Width: |
1000mm-4000mm |
Substrate Thickness: |
8μm-50μm |
Roll Diameter: |
Max. 1500mm |
Inner Diameter Of Core: |
152 Mm |
Speed: |
Max. 1000m/min |
Weight: |
Around 35 Ton |
Coating Speed: |
15 M/s |
PLC Brand: |
Siemens |
Place Of Origin: |
Hefei, China |

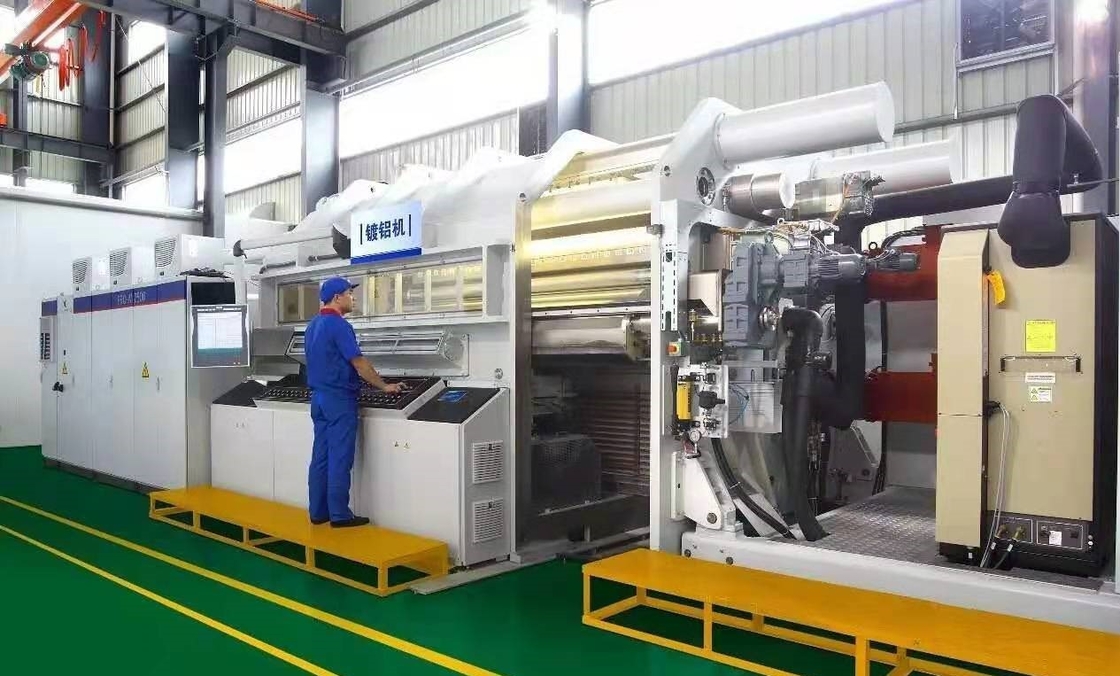

Vacuum Metallizing Plant/Industrial Vacuum Packaging Machine Used To Produce Packaging Metallized Film
Product Description
Reciprocating Roll Handling System: The roles of unwinding roll and rewinding roll can be exchanged, so that it is not necessary to open the vacuum chamber more than one time even for the a complete multilayer metallization process.
Inline Optical Density Monitoring System: Our system is attributed to a open loop control system, in which reactions to uniformity problem can be manually conducted. We prefer the open loop sytem rather than the closed loop feedback system, because, according to our experience in the field of vacuum metallizing, manual reaction is generally quicker than the automatic feedback given by the closed loop system.
Technical Data
| Substrate | PET,OPP,CPP,Paper,etc. |
| Substrate Width | 1000mm-4000mm |
| Film thickness | 8μm-50μm |
| Roll diameter | max. 1500 mm |
| Speed | max,1000m/min |
|
PLC system |
Siemens S7-400 series |
| Driving system | Siemens |
| Size | 14m×5.5m×2.8m
|
| Heating method | electric / oil |
Features
1.Digital PLC Control
2.Single/Double-side Coating
3.Plasma Pre-treatment
4. Pattern Printing
5. Coating Thickness Monitor
6. Accurate Tension Control
Application
Various customers have made decsions for this vacuum metallizing machine serie, the application area of this metalliser is large:
- pharmaceutical packaging,
- tobacco packaing,
- laser film, hot stamping film
- transfer film, dielectric film
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
