Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: MPA-2500
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: Five sets in 4 months
Substrate: |
PET,OPP,CPP,Paper,etc. |
Substrate Width: |
1000mm-4000mm |
Substrate Thickness: |
8μm-50μm |
Roll Diameter: |
Max. 1500mm |
Speed: |
Max. 1000m/min |
Warranty: |
12 Months |
Color: |
White/OEM |
Substrate: |
PET,OPP,CPP,Paper,etc. |
Substrate Width: |
1000mm-4000mm |
Substrate Thickness: |
8μm-50μm |
Roll Diameter: |
Max. 1500mm |
Speed: |
Max. 1000m/min |
Warranty: |
12 Months |
Color: |
White/OEM |

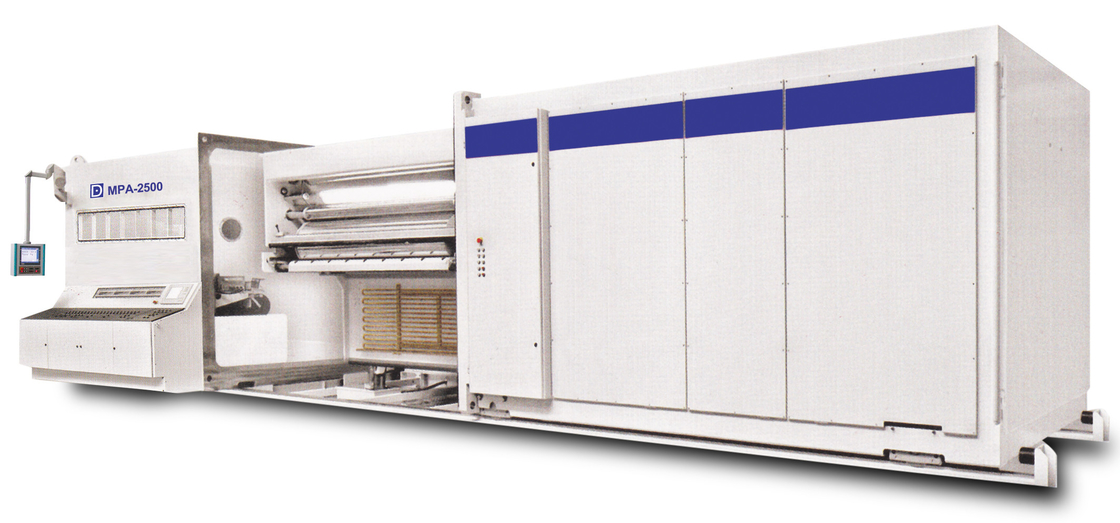

Multi-Function Aluminizing Machine Used For Coating PET Film And Cigarette Paper
Product Description
The aluminizing machine is a device for heating the material to be evaporated to make it adhere to the surface of the substrate, and condensing into a film after evaporation. Its principle is to use heating and evaporation to uniformly atomize aluminum on the surface of the substrate to form an aluminum-plated film. It is mainly used in a variety of food packaging, medical packaging, and tobacco packaging.
Aluminum coating machine generally consists of three parts: vacuum system, evaporation system and winding system. Notes for use are as follows:
1. The vacuum chamber should be regularly maintained and cleaned;
2. Regularly check and maintain supporting vacuum pumps, etc ;
3. Regular machine maintenance;
4. Train operators to prevent equipment from being damaged due to misuse.
The aluminum coating machine has excellent quality, precise accessories, and high accuracy. There are also a group of excellent after-sales service teams to serve you. We can come to the site to debug, guide and service for you, so you can buy it with confidence and use it comfortably.
Technical Data
| Substrate | PET,OPP,CPP,Paper,etc. |
| Substrate Width | 1000mm-4000mm |
| Film thickness | 8μm-50μm |
| Roll diameter | max. 1500 mm |
| Speed | max,1000m/min |
|
PLC system |
Siemens S7-400 series |
| Driving system | Siemens |
| Size | 14m×5.5m×2.8m
|
| Heating method | electric / oil |
Features
1.Digital PLC Control
2.Single/Double-side Coating
3.Plasma Pre-treatment
4. Pattern Printing
5. Coating Thickness Monitor
6. Accurate Tension Control
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
