Metal Foils 800mm Aluminium Coating Machine , Magnetron Sputtering Machine

Product Details

Place of Origin: China

Brand Name: DST

Certification: SGS

Model Number: MOP

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: Based on Specification

Packaging Details: wooden case

Delivery Time: around 4 months

Payment Terms: T/T

Supply Ability: Five sets in 4 months

Get Best Price
Contact Now
Specifications
Highlight:

800mm Aluminium Coating Machine

,

200um Aluminium Coating Machine

,

1600mm Magnetron Sputtering Machine

Substrate:
PET,PI,Metal Foils,etc.
Substrate Width:
1000mm-1600mm
Substrate Thickness:
12μm-200μm
Roll Diameter:
Max. 800mm
Speed:
0.5m/min-25m/min
Warranty:
12 Months
Color:
White/OEM
Substrate:
PET,PI,Metal Foils,etc.
Substrate Width:
1000mm-1600mm
Substrate Thickness:
12μm-200μm
Roll Diameter:
Max. 800mm
Speed:
0.5m/min-25m/min
Warranty:
12 Months
Color:
White/OEM
Description
Metal Foils 800mm Aluminium Coating Machine , Magnetron Sputtering Machine

Multi-Function Magnetron Sputtering Metallizer Used For Coating PET Film



Product Description



Magnetron sputtering is composed of a vacuum system, a winding system, a magnetron target sputtering system, a control system, etc., and can achieve copper, lead, aluminum, tin, silver, etc. sputtering on thin films with a thickness of 2 μm to 300 μm. Can be accurately coated on the surface of various coils such as film, cloth, sponge, copper foil, paper, etc.
Magnetron sputtering can be said to be one of the great achievements in coating technology. It has the advantages of high sputtering rate, low substrate temperature rise, good film substrate bonding force, stable performance, convenient operation and control, etc. It uses physical vapor deposition to achieve sputtering and ion plating (hollow cathode ion plating, hot cathode ion plating, arc ion plating, reactive ion plating, radio frequency ion plating, and DC discharge ion plating).

The working principle of magnetron sputtering is that electrons collide with argon atoms in the process of flying to the substrate under the action of the electric field e, generating ar positive ions and new electrons; new electrons fly to the substrate, and the ar positive ions are under the action of the electric field Accelerate to fly to the cathode target. Bombing the target surface causes the target to sputter. In the sputtered particles, neutral target atoms or molecules are deposited on the substrate to form a thin film. The secondary electrons generated are affected by the electric and magnetic fields, resulting in a direction shift of e (electric field) × b (magnetic field), referred to as exb drift. Its motion trajectory is similar to a cycloid.
The magnetron winding series coating equipment is mainly used in higher-grade packaging, decoration, touch screen, field-effect lighting, radiation protection, heat insulation and frost prevention. The characteristics of the equipment are that the base material is neatly rolled, no scratches, high target utilization, uniform gas discharge from the inflation system, reasonable structure, stable performance, and convenient operation. ITO film, capacitor film, etc. can be plated with the magnetron winding series coating equipment. With the continuous development of coating technology, it will be more commonly used in other fields.

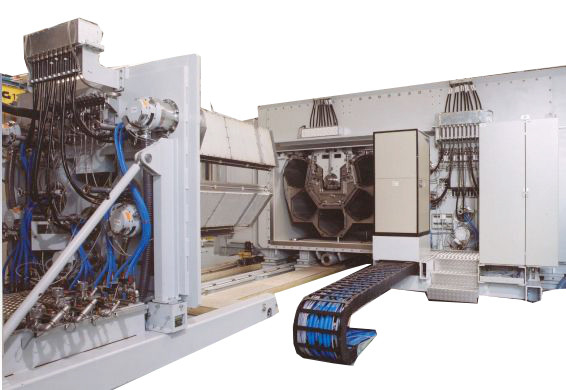

Metal Foils 800mm Aluminium Coating Machine , Magnetron Sputtering Machine 0

Metal Foils 800mm Aluminium Coating Machine , Magnetron Sputtering Machine 1

Metal Foils 800mm Aluminium Coating Machine , Magnetron Sputtering Machine 2





Technical Data



Substrate  PET,PI,Metal foils.etc.
Substrate width 1000mm-1600mm
Substrate thcickness 12μm-200μm
Roll diameter max. 800 mm
Speed 0.5m/min-25m/min





Features



1. Designed for the clean workshop

2.Hardly to produce dirty spots

3.High precision winding system

4. Modular design: convenient for users to maintain the machine

5. It can be sputtered on double sides at the same time to improve the working efficiency







Packaging & Delivery



1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Metal Foils 800mm Aluminium Coating Machine , Magnetron Sputtering Machine 3



Competitive Advantages



1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible  payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.





Our Factory



Metal Foils 800mm Aluminium Coating Machine , Magnetron Sputtering Machine 4

Metal Foils 800mm Aluminium Coating Machine , Magnetron Sputtering Machine 5





Our customers



Metal Foils 800mm Aluminium Coating Machine , Magnetron Sputtering Machine 6



FAQ



Q: Is Dongsheng a factory or trading company?

A: Dongsheng is a factory.



Q:Where is your factory located? Can I visit it before I place an order?

A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.



Q: How about the warranty and after-sale service?

A: We provide 12 months warranty  and  lifetime technic suport for all machinery. We have professional after-sale technical team, we can solve problems in time.
