Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DDCL-1400
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 5 months
Payment Terms: T/T
Supply Ability: Five sets in 5 months
Substrate: |
PET |
Substrate Width: |
500mm-1400mm |
Coating Thickness: |
0.5-4μm |
Tension Range: |
30-400N |
Speed: |
Max. 150m/min |
Voltage: |
380V/50HZ |
Core Components: |
PLC, Bearing, Motor |
Coating Method: |
Micro Gravure Coating |
Dimension: |
31700*6500*6500mm |
Packaging Material: |
Wooden Case |
Roller Width: |
1350mm |
Substrate: |
PET |
Substrate Width: |
500mm-1400mm |
Coating Thickness: |
0.5-4μm |
Tension Range: |
30-400N |
Speed: |
Max. 150m/min |
Voltage: |
380V/50HZ |
Core Components: |
PLC, Bearing, Motor |
Coating Method: |
Micro Gravure Coating |
Dimension: |
31700*6500*6500mm |
Packaging Material: |
Wooden Case |
Roller Width: |
1350mm |

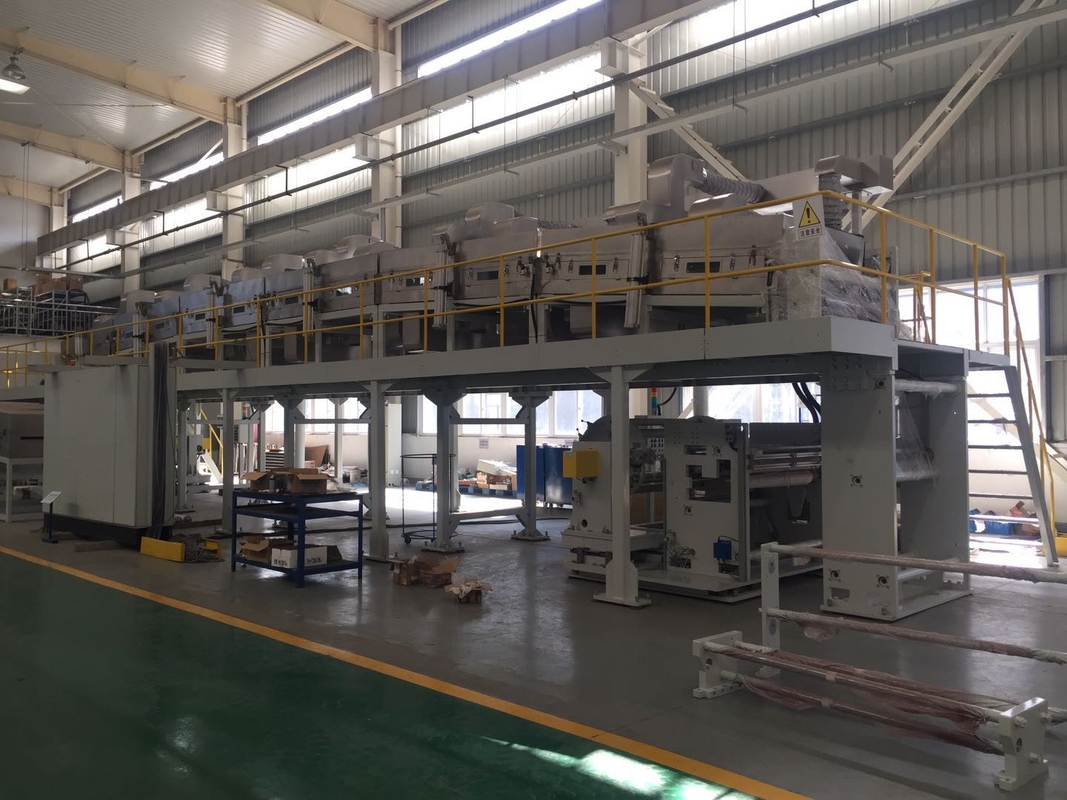

1400mm PP Coating Machine China Manufacturing Web Coating Machine Used For Li-Ion Battery Separate Film
Product Description
Advantage:
. High efficiency, it can realize automatic roll changing without speed down and process parameters unchanged; it can realize the least waste of base film in roll changing, and special design of broken film to ensure the least bottom wrinkle.
. Reasonable mechanical design, modular combination improved the installation accuracy, reduce the time of installation and debugging.
Technical Data
| No. | Item | Specification |
| 1 | Thickness of vertical plate | 50mm |
| 2 | Roll width | 1400mm |
| 3 | Coating thickness | 0.5um-4um(After drying on both sides) |
| 4 | Collector width | 650mm～1300mm |
| 5 | Dressing width | 700mm～1250mm |
| 6 | Normal production speed | 120m/min |
| 7 | Unwinding diameter | Max:Φ600mm |
| 8 | Winding diameter | Max:Φ650mm |
| 9 | Maximum load of winding and unwinding | Unwinding 600kg / winding 800kg |
| 10 | Tension range | 30～400N/Full width |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
