Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DDCL-1400
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: Five sets in 4 months
Substrate: |
PE |
Substrate Width: |
500mm-1400mm |
Speed: |
Max. 150m/min |
Color: |
RAL7035/OEM |
Warranty: |
12 Months |
Dimension: |
31700*6500*6500mm |
Weight: |
45000kg |
Coating Thickness: |
0.5-4μm |
Tension Range: |
30-400N |
Unwind Diameter: |
Max. Φ600mm |
Rewind Diameter: |
Max. Φ650mm |
Substrate: |
PE |
Substrate Width: |
500mm-1400mm |
Speed: |
Max. 150m/min |
Color: |
RAL7035/OEM |
Warranty: |
12 Months |
Dimension: |
31700*6500*6500mm |
Weight: |
45000kg |
Coating Thickness: |
0.5-4μm |
Tension Range: |
30-400N |
Unwind Diameter: |
Max. Φ600mm |
Rewind Diameter: |
Max. Φ650mm |

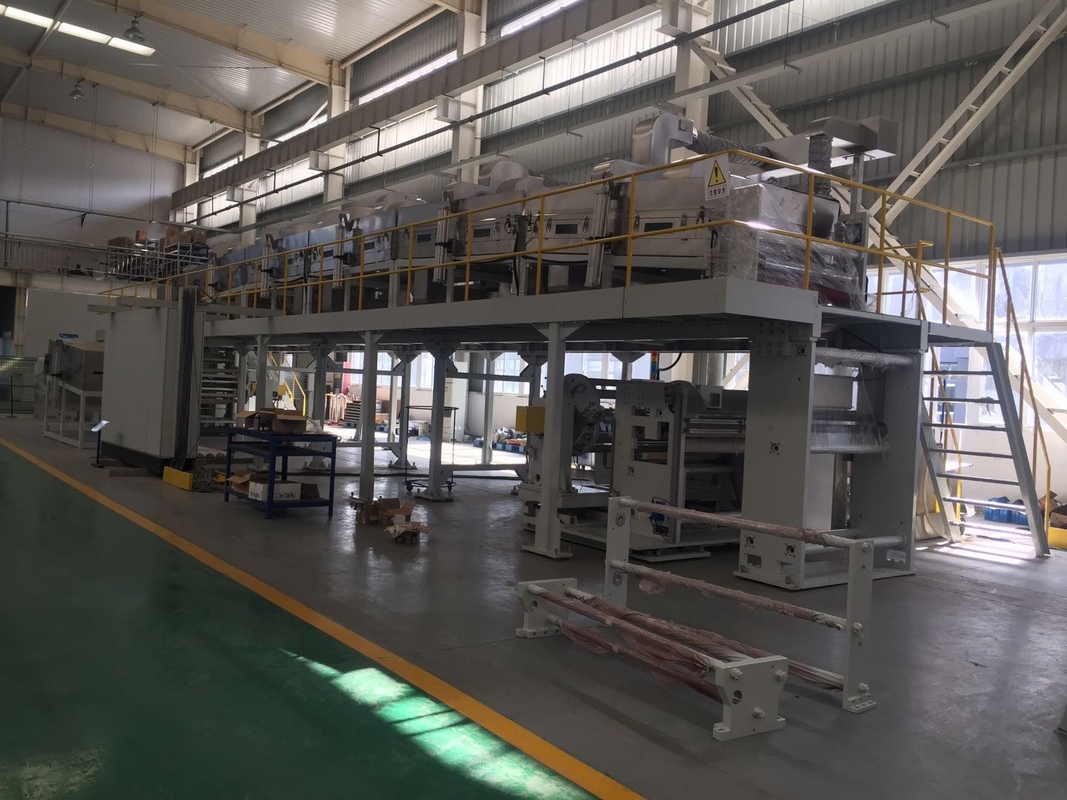

Auto Roll Shifting Double-Sided Web Coating Machine Used For Coating Electrode Foil And Optical Films
Product Description
Coating machine is mainly used for the production of film, paper and other surface coating process. This machine is to coat the rolled substrate with a layer of adhesive, coating or ink with specific functions, and then wind it up after drying.
It uses a special multi-functional coating head, which can realize various forms of surface coating. The winding and unwinding of the coater are equipped with full speed automatic film connecting mechanism, and the tension closed-loop automatic control of PLC program.
DCL series coating machine is used for Ll-lon battery separate film, electrode foil optical films etc.
Basic Features
1. The combination of unwinder and rewinder with double structure can connect printing material automatically without stopping operating,which brings great productivity.
2. According to technology requires,we can choose different coating methods for coating,thus we can achieve accurate the amount of coating.
3. Tension control device in each section to keep the material running stably,without any wrinkle or scratch.
4. According to the function of products, high quality electronic protection film can be delivered by non-track.
5. Digital PLC control
6. Single or double sided coating method can be choosed.
Technical Data
| Substrate | PE,etc. |
| Substrate Width | 500mm-1400mm |
| Coating thickness | 0.5-4μm |
| Tension range | 30-400N |
| Coating amount | 1-4μm |
| Speed | max. 150m/min |
| Power supply | AC380V 50Hz + PE |
| Dimension | 31700*6500*6500mm |
| Unwind diameter | max. Φ600mm |
| Rewind diameter | max. Φ650mm |
| Color | OEM/RAL7035 |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
