Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DDCL-1400
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 5 months
Payment Terms: T/T
Supply Ability: Five sets in 5 months
Substrate: |
PET |
Substrate Width: |
500mm-1400mm |
Coating Thickness: |
0.5-4μm |
Tension Range: |
30-400N |
Unwind Diameter: |
Max. Φ600mm |
Rewind Diameter: |
Max. Φ650mm |
Speed: |
Max. 150m/min |
Dimension: |
31700*6500*6500mm |
Place Of Origin:: |
Hefei, China |
Condition: |
New |
Payment Term: |
TT |
Coating Method: |
Micro Gravure Coating |
Keywords: |
PET Film Coating Machine |
Packaging Material: |
Plastic, Wood, Film |
Substrate: |
PET |
Substrate Width: |
500mm-1400mm |
Coating Thickness: |
0.5-4μm |
Tension Range: |
30-400N |
Unwind Diameter: |
Max. Φ600mm |
Rewind Diameter: |
Max. Φ650mm |
Speed: |
Max. 150m/min |
Dimension: |
31700*6500*6500mm |
Place Of Origin:: |
Hefei, China |
Condition: |
New |
Payment Term: |
TT |
Coating Method: |
Micro Gravure Coating |
Keywords: |
PET Film Coating Machine |
Packaging Material: |
Plastic, Wood, Film |

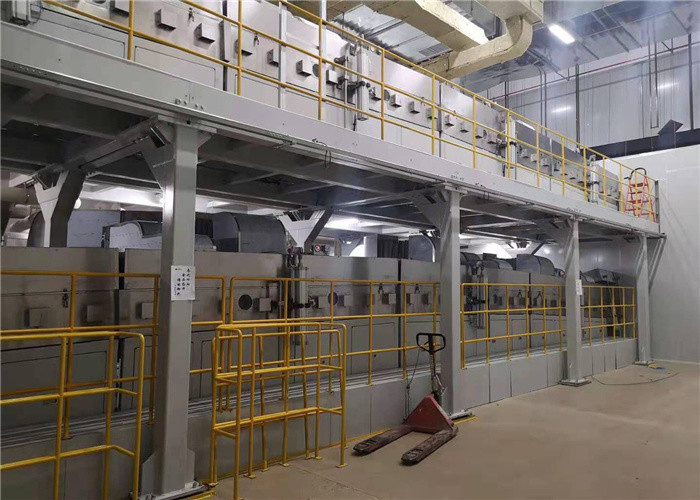

Single/Double Sided Coating Manchine With Auto Roll Shifting Web Coating Machine For Plastic Film
Product Description
Unwinding device
Type: air expansion shaft chuck at both ends of film coil to eliminate the influence of friction torque to the greatest extent. Core clamping mode: air expansion shaft
Tension control: pendulum floating roll unwinding tension automatic control, automatic digital tension control system (through two AC servo motors), tension, diameter, length, mechanical friction compensation can be set on the touch control screen
Automatic roll changing function can ensure the roll changing without stopping the machine and reducing the speed, and ensure the consistency of film quality
Deviation correction function: German E + L, automatic manual function switching
Film breaking mode: hot wire can meet different process requirements
Technical Data
| Substrate | PE,etc. |
| Substrate Width | 500mm-1400mm |
| Coating thickness | 0.5-4μm |
| Tension range | 30-400N |
| Coating amount | 1-4μm |
| Speed | max. 150m/min |
| Power supply | AC380V 50Hz + PE |
| Dimension | 31700*6500*6500mm |
| Unwind diameter | max. Φ600mm |
| Rewind diameter | max. Φ650mm |
| Color | OEM/RAL7035 |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
