Product Details
Place of Origin: China
Brand Name: DST
Certification: CE-ROSH
Model Number: DCL–1700
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 5 months
Payment Terms: T/T
Supply Ability: Five sets in 5 months
Substrate: |
PET |
Substrate Width: |
500mm-1400mm |
Coating Thickness: |
0.5-4μm |
Tension Range: |
30-400N |
Speed: |
Max. 150m/min |
Voltage: |
380V/50HZ |
Core Components: |
PLC, Bearing, Motor |
Coating Method: |
Micro Gravure Coating |
Base Material: |
PP PET PE Film |
Dimension: |
31700*6500*6500mm |
Packaging Material: |
Wooden Case |
Condition: |
New |
Roller Width: |
1350mm |
Substrate: |
PET |
Substrate Width: |
500mm-1400mm |
Coating Thickness: |
0.5-4μm |
Tension Range: |
30-400N |
Speed: |
Max. 150m/min |
Voltage: |
380V/50HZ |
Core Components: |
PLC, Bearing, Motor |
Coating Method: |
Micro Gravure Coating |
Base Material: |
PP PET PE Film |
Dimension: |
31700*6500*6500mm |
Packaging Material: |
Wooden Case |
Condition: |
New |
Roller Width: |
1350mm |

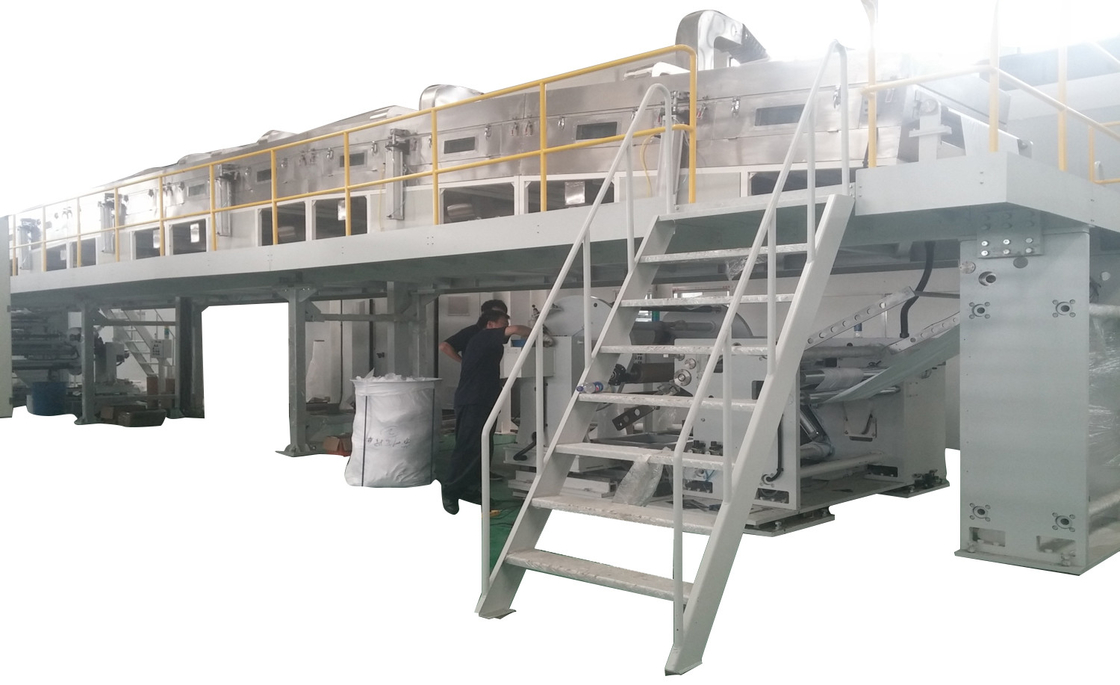

Elevated Single-Side Membrane Coating Machine
Product Description
The DCL-1700 high mounted double-sided coating machine adopts advanced technology and professional design to coat ceramic and PVDF materials on lithium-ion battery separators. It has the characteristics of fast production speed, stable tension control, and high coating accuracy. Mainly including unwinding module, preheating oven, coating module, oven module, winding module and other modules; And meet the coating needs of users.
Technical Data
| Substrate | PE,etc. |
| Substrate Width | 500mm-1400mm |
| Coating thickness | 0.5-4μm |
| Tension range | 30-400N |
| Coating amount | 1-4μm |
| Speed | max. 150m/min |
| Power supply | AC380V 50Hz + PE |
| Dimension | 31700*6500*6500mm |
| Unwind diameter | max. Φ600mm |
| Rewind diameter | max. Φ650mm |
| Color | OEM/RAL7035 |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
