Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSE
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 4 sets in four months
Substrate: |
Wet-process Sepatate Film |
Substrate Width: |
3200mm－4200mm |
Solvent Volume: |
150 M³ |
Extraction Liquid: |
Dichloromethane |
Substrate Thickness: |
Inlet15～45μm ,outlet 10～30μm |
Roll Surface Length: |
4500mm |
Extraction Length: |
123m |
Total Power: |
300kw/h |
Weight: |
240t |
Substrate: |
Wet-process Sepatate Film |
Substrate Width: |
3200mm－4200mm |
Solvent Volume: |
150 M³ |
Extraction Liquid: |
Dichloromethane |
Substrate Thickness: |
Inlet15～45μm ,outlet 10～30μm |
Roll Surface Length: |
4500mm |
Extraction Length: |
123m |
Total Power: |
300kw/h |
Weight: |
240t |

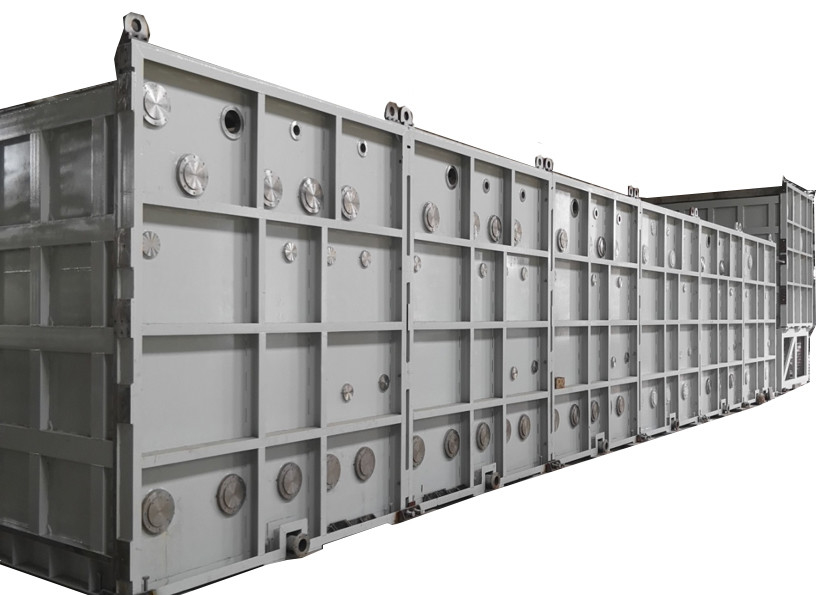

3200-4200mm Extraction Winder 123m Extraction Length With High Extraction Efficiency
There are six sections of cleaning tanks in the extraction process. The cleaning tanks are transited by scraping tanks. The solvent between the tanks overflows. The new liquid enters from the last tank. The flow direction of the new liquid is opposite to that of the diaphragm. The first tank has a waste liquid outlet. The overflow layer between the cleaning tanks is 30mm high.
The inner side of the cleaning tank is made of stainless steel SUS316L, the outer frame is made of Q345, and the outer surface of the tank is covered with insulation layer. The left and right sides and the front and rear side plates of the tank body are evenly distributed with stiffeners to ensure the overall rigidity of the tank body. The top of the tank body is provided with a cover plate, which includes operation and observation windows. There is a ladder corresponding to the window in the tank, which is convenient for personnel to enter and leave during equipment maintenance. The laminated glass is used for the window glass to ensure safety.
The rollers in the cleaning tank are made of stainless steel SUS316L, with a diameter of 210mm. The rollers are independently driven by servo motors, and the two ends of the rollers are mechanically sealed.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Technical Data
| Substrate | wet-process sepatate film |
| Substrate Width | 3200mm－4200mm |
| Substrate thickness | inlet15～45μm ,outlet 10～30μm |
| Electricity | 3 phase * 200 volt *60Hz |
| Speed | 10-75m/min |
| Extraction liquid | dichloromethane |
| Solvent volume | Six tanks are about 150 m3 in total |
| Extraction length | 123m |
| Total power | 300kw/h |
| Power supply | AC380V, 50Hz,three phase current |
Features
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Our Factory
Dongheng(dswintec.com) located in HeFei city and SuZhou city, Dongsheng M&E Tech Co.,Ltd. is a well-known manufacturer of functional-film equipments. The company specializes in manufacturing vacuum coating machines, splitting machines, rewinding machines, bidirectional film-pulling machines, and other related equipments, for fields of electronic films, lithium battery separators, optical films, packing films, cooper/aluminum foil and others.
Dongsheng is also equipped with well-qualified R&D personnel,and experienced mechanical and electrical application engineers. Oriented to customers requirements and satisfaction, Dongsheng is dedicated to provide integrated solutions for designing & manufacturing,upgrading & reconstruction for used equipments, process designing, equipment installation, technical consultation,and personnel training, from single devices to whole production lines.
With excellent products and efficient services, DONGSHENG is obtaining more and more satisfaction and support from users at home and abroad.
FAQ
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchase
Video
