Product Details
Place of Origin: China
Brand Name: DST
Model Number: DSH
Payment & Shipping Terms
Minimum Order Quantity: 1set
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Substrate: |
Wet-process Sepatate Film |
Substrate Width: |
3200mm－4200mm |
Extraction Liquid: |
Dichloromethane |
Substrate Thickness: |
Substrate Thickness |
Extraction Length: |
123m |
Weight: |
240t |
Substrate: |
Wet-process Sepatate Film |
Substrate Width: |
3200mm－4200mm |
Extraction Liquid: |
Dichloromethane |
Substrate Thickness: |
Substrate Thickness |
Extraction Length: |
123m |
Weight: |
240t |

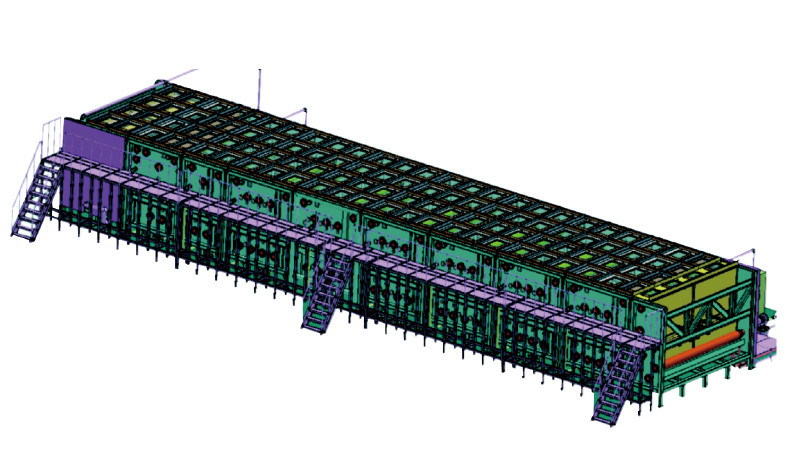

DSH series extraction machine is used for the producing wet-process Li-ion battery separate film etc.
Features
There is a transition between the cleaning tank and the cleaning tank through the scraper tank. After the membrane comes out of the former cleaning tank, the membrane enters the scraper tank through two scraper rollers. The inside of the scraper roller is usually warm water. The mold temperature machine is used to ensure that the temperature of the circulating water in the roller is constant, and the rotation direction of the scraper roller is consistent with the running direction of the diaphragm. There are three groups of mold temperature machine in the scraper roller part, and each group of mold temperature machine controls four scraper rollers.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Technical Data
| Substrate | wet-process sepatate film |
| Substrate Width | 3200mm－4200mm |
| Substrate thickness | inlet15～45μm ,outlet 10～30μm |
| Electricity | 3 phase * 200 volt *60Hz |
| Speed | 10-75m/min |
| Extraction liquid | dichloromethane |
| Solvent volume | Six tanks are about 150 m3 in total |
| Extraction length | 123m |
| Total power | 300kw/h |
| Power supply | AC380V, 50Hz,three phase current |
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Our Factory
Dongheng(dswintec.com) located in HeFei city and SuZhou city, Dongsheng M&E Tech Co.,Ltd. is a well-known manufacturer of functional-film equipments. The company specializes in manufacturing vacuum coating machines, splitting machines, rewinding machines, bidirectional film-pulling machines, and other related equipments, for fields of electronic films, lithium battery separators, optical films, packing films, cooper/aluminum foil and others.
Dongsheng is also equipped with well-qualified R&D personnel,and experienced mechanical and electrical application engineers. Oriented to customers requirements and satisfaction, Dongsheng is dedicated to provide integrated solutions for designing & manufacturing,upgrading & reconstruction for used equipments, process designing, equipment installation, technical consultation,and personnel training, from single devices to whole production lines.
With excellent products and efficient services, DONGSHENG is obtaining more and more satisfaction and support from users at home and abroad.
FAQ
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchase
