Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSL-1650
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Product Name: |
Slitter Rewinder Machine |
Min. Substrate Width: |
300mm |
Max. Substrate Thickness: |
40μm |
Max. Unwind Diameter: |
400mm |
Unwind Diameter: |
Max. 400mm |
Min. Slitting Width: |
40mm |
Acceptance Speed: |
150m / Min |
Max. Working Speed: |
200m / Min |
Knife Type: |
Straight Type |
Power Supply: |
AC400V 50Hz 3Phase |
Tension: |
15-120N |
Product Name: |
Slitter Rewinder Machine |
Min. Substrate Width: |
300mm |
Max. Substrate Thickness: |
40μm |
Max. Unwind Diameter: |
400mm |
Unwind Diameter: |
Max. 400mm |
Min. Slitting Width: |
40mm |
Acceptance Speed: |
150m / Min |
Max. Working Speed: |
200m / Min |
Knife Type: |
Straight Type |
Power Supply: |
AC400V 50Hz 3Phase |
Tension: |
15-120N |

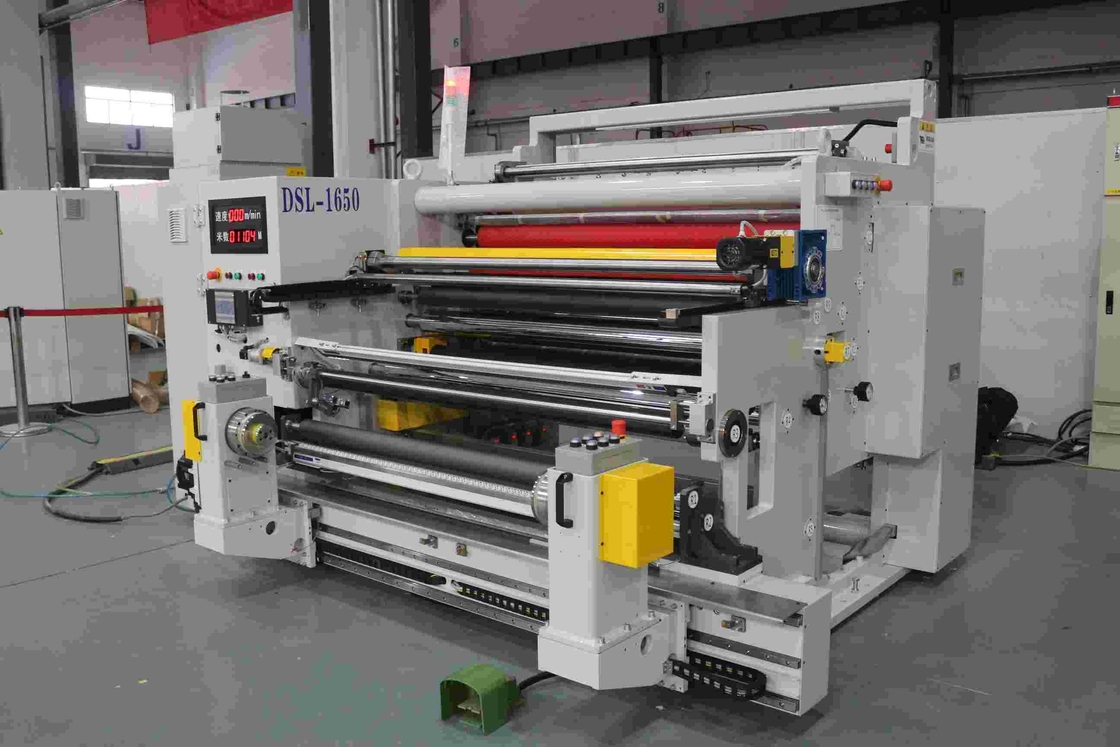

DSLS Series Slitter Rewinder Machine
The equipment is mainly used for the production of lithium battery separator slitting. The main task is to divide the original wide rolled lithium battery separator into lithium battery separators of different sizes and widths through unwinding, transmission mechanism, and slitting mechanism, and complete the winding process.
-Horizontal movement and front-end winding mode
-A large touch screen human-machine operating system
-Unwinding and rewinding CNC AC servo drive
-Horizontal movable electric control knife holder slitting mode straight knife standard configuration
-Unwinding automatic deviation correction
-Rewinding anti-static function
Process Flow Diagram
Unwinding → Correction Unit → Transmission → Flattening → Circular Blade Slitting → Transmission → Film Separation → Upper & Lower Rewinding
↳ Trim Waste
Equipment Schematic Diagram
1) 3 phase x 400 volt x 50 Hz
2) Ambient temperature: 15~45℃
3) Air humidity: 40%~90%
4) Voltage variation: <±5%
1) Clean compressed air free from moisture, dirt and oil
2) Pressure (entering the device interface): Approx. 5-6 bar gauge
3) Compressed air condensation point: 5℃
After the equipment is adjusted to a level, fix it with a pressure plate and expansion bolts.
| Product Name | Slitter Rewinder Machine |
| Substrate Thickness | 7-40μm |
| Substrate Width | 300-1500mm |
| Slitting width | Min. 40mm |
| Unwinding Core | The Diameter of Inner Core 3 INCH, 6 INCH |
| Unwinding diameter | Max. 400mm |
| Rewinding diameter | Max. 400mm |
| Acceptance Speed | 150m/min |
| PLC | Germany Beckhoff |
| Operation screen | Colorful touch screen |
| Working Speed | Max. 200m / min |
| Mechanical Speed | 250m / min |
| Power supply | AC400V, 50Hz, 3P |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
OUR FACTORY
OUR WORKSHOP
OUR CUSTOMER
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.
Q: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
