Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSC-650U
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 5 sets in 4 months
Substrate: |
OPP. 2.0mic – 15mic ; PET. 2.7mic – 15mic |
Substrate Width: |
Max.500-1000mm |
Substrate Thickness: |
OPP:2.0μm-15μm;PET:0.8μm-12μm |
Rewind Tention: |
10-50N |
Rewind Pressure: |
34-340N |
Speed: |
Max. 500m/min |
Warranty: |
12 Months |
Color: |
RAL 7035 For The Frame |
Electricity: |
3 Phase * 200 Volt *60Hz |
Place Of Origin: |
Hefei, China |
Brand: |
DST |
Condition: |
New |
Structure: |
Horizontal Type |
Substrate: |
OPP. 2.0mic – 15mic ; PET. 2.7mic – 15mic |
Substrate Width: |
Max.500-1000mm |
Substrate Thickness: |
OPP:2.0μm-15μm;PET:0.8μm-12μm |
Rewind Tention: |
10-50N |
Rewind Pressure: |
34-340N |
Speed: |
Max. 500m/min |
Warranty: |
12 Months |
Color: |
RAL 7035 For The Frame |
Electricity: |
3 Phase * 200 Volt *60Hz |
Place Of Origin: |
Hefei, China |
Brand: |
DST |
Condition: |
New |
Structure: |
Horizontal Type |

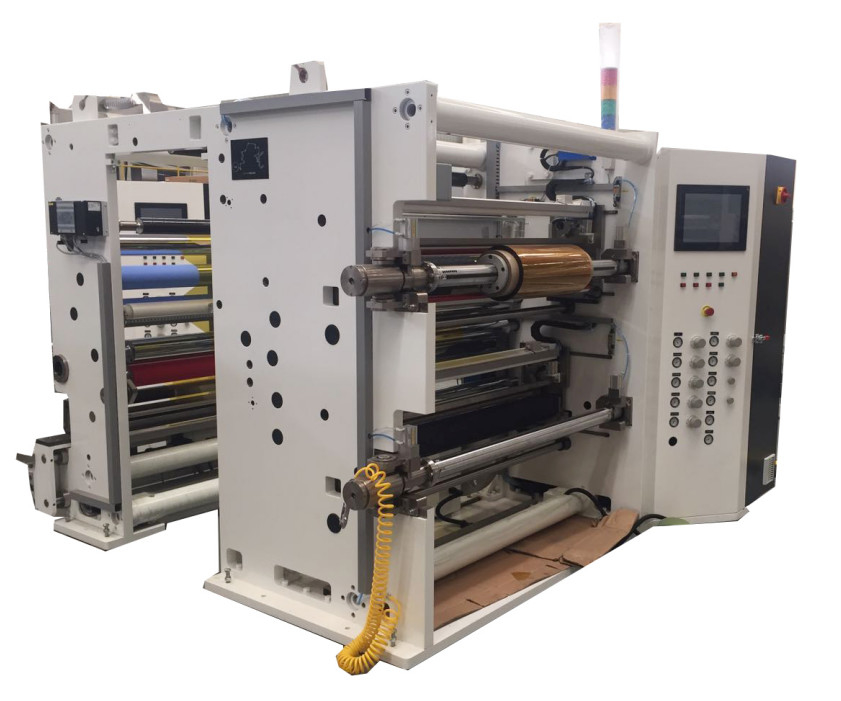

DST High Speed BOPP Plastic Film Slitter Rewinder Machine Ulta Thin Fim Slitting Machine
Product Description
DST computer control slitter rewinder machine is adopted most advanced technology,which is fit for slitting various plastic film such as BOPP, PET, etc.Main electrical parts imported world brand and with latest technology, so it can fit for various high precision slitting rewinding jumbo roll materials.
Features
Technical Data
| Substrate | OPP. 2.0mic – 15mic ; PET. 2.7mic –15mic |
| Substrate Width | 500-1000mm |
| Substrate thickness | OPP:2.0μm-15μm;PET:0.8μm-12μm |
| Electricity | 3 phase * 200 volt *60Hz |
| Unwinding diameter | max. 650mm |
| Speed | max.500m/min |
| PLC | Beckhoff Germany |
| Operation screen | Colorful touch screen , HMI |
| Power supply | AC380V, 50Hz,three phase current |
