Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSL-1650
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Product Name: |
Slitter Rewinder Machine |
Min. Substrate Width: |
300mm |
Max. Substrate Thickness: |
40μm |
Max. Unwind Diameter: |
400mm |
Unwind Diameter: |
Max. 400mm |
Min. Slitting Width: |
40mm |
Acceptance Speed: |
150m / Min |
Max. Working Speed: |
200m / Min |
Knife Type: |
Straight Type |
Power Supply: |
AC400V 50Hz 3Phase |
Tension: |
15-120N |
Product Name: |
Slitter Rewinder Machine |
Min. Substrate Width: |
300mm |
Max. Substrate Thickness: |
40μm |
Max. Unwind Diameter: |
400mm |
Unwind Diameter: |
Max. 400mm |
Min. Slitting Width: |
40mm |
Acceptance Speed: |
150m / Min |
Max. Working Speed: |
200m / Min |
Knife Type: |
Straight Type |
Power Supply: |
AC400V 50Hz 3Phase |
Tension: |
15-120N |

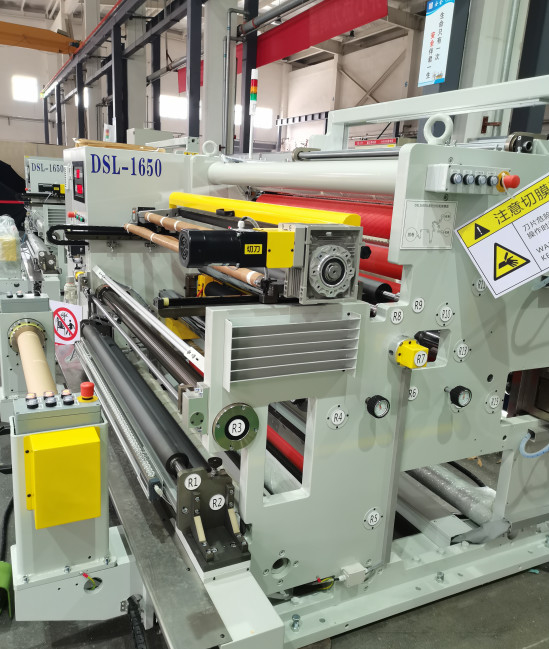

DSL Series Slitter Rewinder Machine
DSL-1650 high-performance CNC Slitter Rewinder Machine is professionally used for materials such as lithium-ion battery separators etc.
-Horizontal movement and front-end winding mode
-A large touch screen human-machine operating system
-Unwinding and rewinding CNC AC servo drive
-Horizontal movable electric control knife holder slitting mode straight knife standard configuration
-Unwinding automatic deviation correction
-Rewinding anti-static function
1) 3 phase x 400 volt x 50 Hz
2) Ambient temperature: 15~45℃
3) Air humidity: 40%~90%
4) Voltage variation: <±5%
1) Clean compressed air free from moisture, dirt and oil
2) Pressure (entering the device interface): Approx. 5-6 bar gauge
3) Compressed air condensation point: 5℃
After the equipment is adjusted to a level, fix it with a pressure plate and expansion bolts.
| Product Name | Slitter Rewinder Machine |
| Substrate Thickness | 7-40μm |
| Substrate Width | 300-1500mm |
| Slitting width | Min. 40mm |
| Unwinding Core | The Diameter of Inner Core 3 INCH, 6 INCH |
| Unwinding diameter | Max. 400mm |
| Rewinding diameter | Max. 400mm |
| Acceptance Speed | 150m/min |
| PLC | Germany Beckhoff |
| Operation screen | Colorful touch screen |
| Working Speed | Max. 200m / min |
| Mechanical Speed | 250m / min |
| Power supply | AC400V, 50Hz, 3P |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
OUR FACTORY
OUR WORKSHOP
OUR CUSTOMER
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.
Q: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
