Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSL-1650
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Product Name: |
Slitter Rewinder Machine |
Substrate Width: |
300mm - 1500mm |
Substrate Thickness: |
7μm-40μm |
Rewind Diameter: |
Max. 400mm |
Slitting Width: |
40mm~1500mm |
Working Speed: |
Max. 200m / Min |
Dimension: |
2300x2900x1880mm |
Color: |
Grey Or Customized |
Weight: |
Approx. 6000kg |
Origin: |
China |
Packing: |
Wooden Case |
Shipment: |
By Sea, By Air |
Product Name: |
Slitter Rewinder Machine |
Substrate Width: |
300mm - 1500mm |
Substrate Thickness: |
7μm-40μm |
Rewind Diameter: |
Max. 400mm |
Slitting Width: |
40mm~1500mm |
Working Speed: |
Max. 200m / Min |
Dimension: |
2300x2900x1880mm |
Color: |
Grey Or Customized |
Weight: |
Approx. 6000kg |
Origin: |
China |
Packing: |
Wooden Case |
Shipment: |
By Sea, By Air |
DSL Series Slitter Rewinder Machine
DSL-1650 high-performance CNC Slitter Rewinder Machine is professionally used for materials such as lithium-ion battery separators etc.
A. Unwinding Device
B. Slitting Device
Type: Circular knife slitting method, Upper circular cutter shaft is independently driven with adjustable speed
C. Rewinding Device
Type, Slip Shaft, Tension control, Touch Pressure, Remove static electricity, Meter accuracy
D. Transmission Control
Drive, Flattening Roller, Touch Roller, Guiding Roller

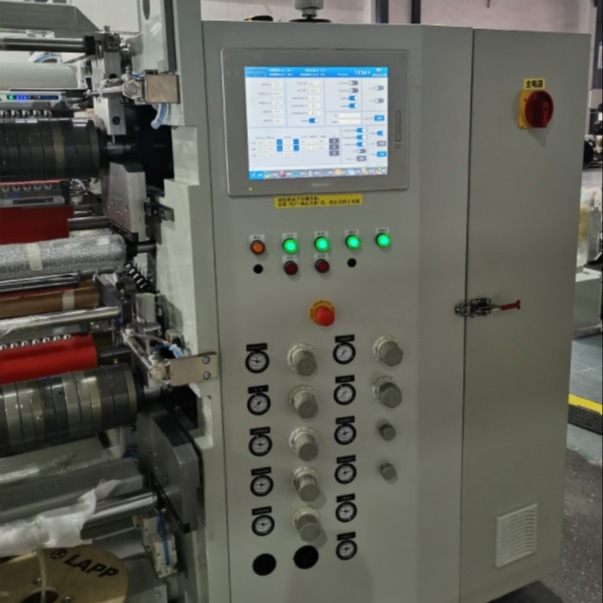

E. Electrical Control
1) Main electrical control box
2) Operation screen
3) The main components of the equipment are all from internationally renowned brands such as PULS, Beckhoff, LS, SMC, SKF, Muller, Phoenix etc.
1) 3 phase x 400 volt x 50 Hz
2) Ambient temperature: 15~45℃
3) Air humidity: 40%~90%
4) Voltage variation: <±5%
1) Clean compressed air free from moisture, dirt and oil
2) Compressed air condensation point: 5℃
After the equipment is adjusted to a level, fix it with a pressure plate and expansion bolts.
| Product Name | Slitter Rewinder Machine |
| Substrate Thickness | 7-40μm |
| Substrate Width | 300-1500mm |
| Slitting width | Min. 40mm |
| Unwinding Core | The Diameter of Inner Core 3 INCH, 6 INCH |
| Unwinding diameter | Max. 400mm |
| Rewinding diameter | Max. 400mm |
| Acceptance Speed | 150m/min |
| PLC | Germany Beckhoff |
| Operation screen | Colorful touch screen |
| Working Speed | Max. 200m / min |
| Mechanical Speed | 250m / min |
| Power supply | AC400V, 50Hz, 3P |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
OUR FACTORY
OUR WORKSHOP
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.
Q: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q: Payment Terms
A: TT 30% in advance, 70% before shipment.
