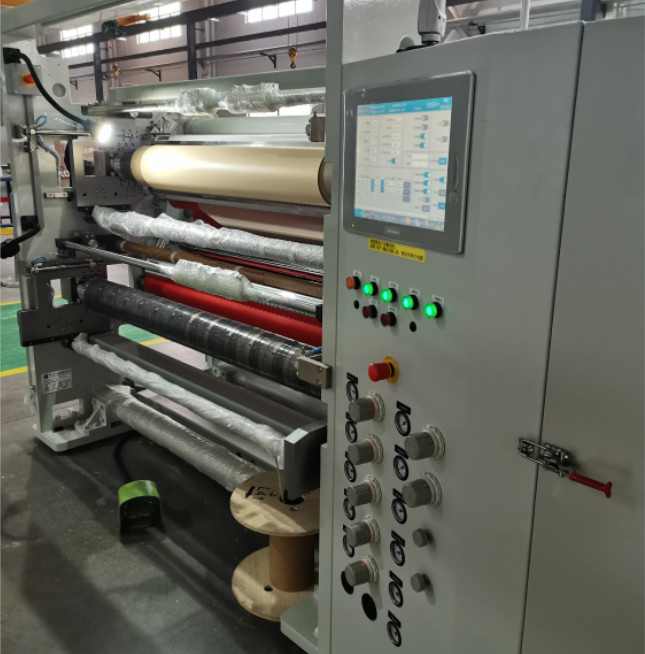

DSL1650 Slitter Rewinder Machine With Substrate Thickness Max. 40μm

DSL Series Slitter Rewinder Machine​

DSL-1650 high-performance CNC Slitter Rewinder Machine is professionally used for materials such as lithium-ion battery separators etc.

• Function

-Horizontal movement and front-end winding mode

-A large touch screen human-machine operating system

-Unwinding and rewinding CNC AC servo drive

-Horizontal movable electric control knife holder slitting mode straight knife standard configuration

-Unwinding automatic deviation correction

-Rewinding anti-static function

• Description

A. Unwinding Device

B. Slitting Device

Type: Circular knife slitting method, Upper circular cutter shaft is independently driven with adjustable speed

C. Rewinding Device

Type, Slip Shaft, Tension control, Touch Pressure, Remove static electricity, Meter accuracy

D. Transmission Control

Drive, Flattening Roller, Touch Roller, Guiding Roller

E. Electrical Control

1) Main electrical control box

2) Operation screen

3) The main components of the equipment are all from internationally renowned brands such as PULS, Beckhoff, LS, SMC, SKF, Muller, Phoenix etc.

• Electricity

1) 3 phase x 400 volt x 50 Hz

2)  Ambient temperature: 15~45℃

3) Air humidity: 40%~90%

4) Voltage variation: <±5%

• Compressed air

1) Clean compressed air free from moisture, dirt and oil

2) Pressure (entering the device interface):  Approx. 5-6 bar gauge

3) Compressed air condensation point: 5℃

• Equipment Positioning

After the equipment is adjusted to a level, fix it with a pressure plate and expansion bolts.

• Technical Data

Competitive Advantages

1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.

Packaging & Delivery

1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

OUR FACTORY

OUR WORKSHOP

OUR CUSTOMER

FAQ

Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.

Q2: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.

Q3: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.

Q4: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

Q5: Payment Terms
A: TT 30% in advance, 70% before shipment.

Q6: Machine installation
A: We could assign the technician to the place for the on-site installation if requested by the purchaser.
