Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSL-1500
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Product Name: |
Slitter Rewinder Machine |
Substrate Width: |
500mm - 1350mm |
Substrate Thickness: |
7μm-50μm |
Max. Unwind Diameter: |
500mm |
Min. Slitting Width: |
Min. 40mm |
Dimension: |
2650x2200x1550mm |
Color: |
White Or Customized |
Max. Unwinding Core: |
1500mm Length |
Product Name: |
Slitter Rewinder Machine |
Substrate Width: |
500mm - 1350mm |
Substrate Thickness: |
7μm-50μm |
Max. Unwind Diameter: |
500mm |
Min. Slitting Width: |
Min. 40mm |
Dimension: |
2650x2200x1550mm |
Color: |
White Or Customized |
Max. Unwinding Core: |
1500mm Length |

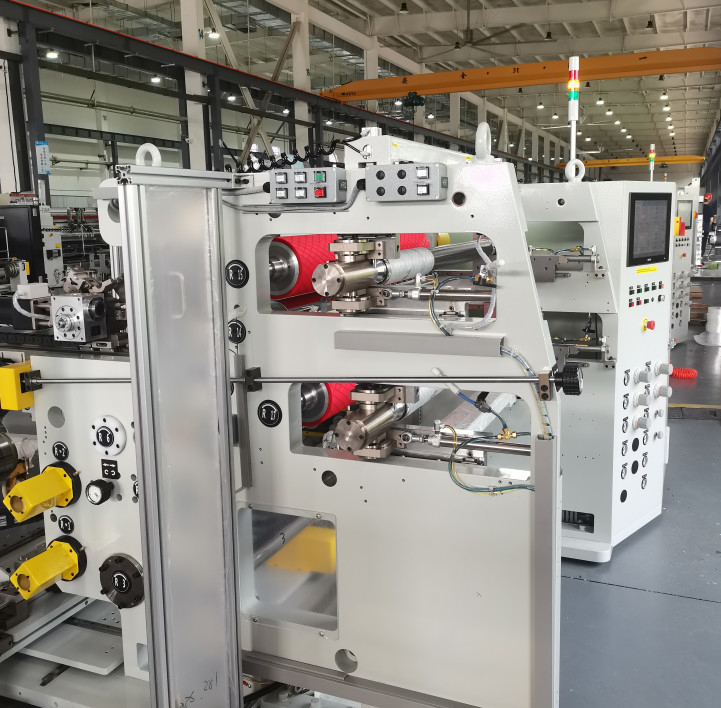

DSP Series Slitter Rewinder Machine
High-performance CNC Slitting Rewinder Machine is professionally used for materials such as lithium-ion battery separators.
1) 3 phase x 380 volt x 50 Hz
2) Connected power: approx. 20 kVA
3) Average consumption: approx. 15 kW
4) Voltage variation: <±5%
1) Clean compressed air free from moisture, dirt and oil
2) Pressure (entering the device interface): Approx. 5-6 bar gauge
After the equipment is adjusted to a level, fix it with a pressure plate and expansion bolts.
| Substrate Thickness | 7-50μm |
| Substrate Width | 500-150mm |
| Slitting width | Min. 40mm |
| Electricity | 3 phase * 380 volt *50Hz |
| Unwind diameter | max. 500mm |
| Rewind diameter | max. 300mm |
| Speed | max.150m/min |
| PLC | Germany Beckhoff |
| Operation screen | Colorful touch screen |
| Power supply | AC380V, 50Hz, 3P |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
OUR WORKSHOP
OUR CUSTOMER
FAQ
Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q2: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.
Q3: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q4: Payment Terms
A: TT 30% in advance, 70% before shipment.
