Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSP
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Substrate: |
OPP, PET |
Substrate Width: |
Min. 1000mm |
Unwind Diameter: |
Max. 450mm |
Mechanical Speed: |
Max. 150m / Min |
Slitting Width: |
250mm-1650mm |
Color: |
White Or Customized |
Operation Screen: |
Colorful Touch Screen |
Substrate: |
OPP, PET |
Substrate Width: |
Min. 1000mm |
Unwind Diameter: |
Max. 450mm |
Mechanical Speed: |
Max. 150m / Min |
Slitting Width: |
250mm-1650mm |
Color: |
White Or Customized |
Operation Screen: |
Colorful Touch Screen |

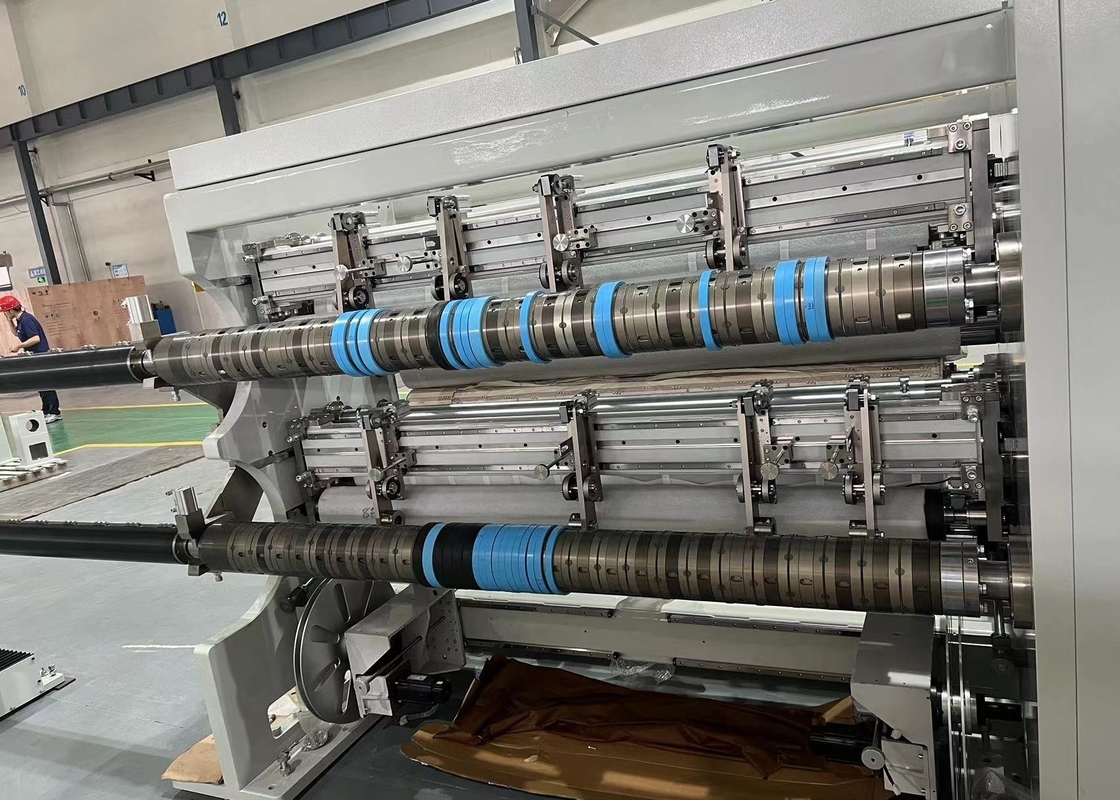

DSP Series Slitter Rewinder Machine
The high-performance slitter Rewinder Machine is professionally used in composite current collector materials such as PET and OPP.
- Horizontal movement and front-mounted rewinding method
- Large-screen touch-type human-machine operating system
- CNC unwinding and rewinding AC servo drive
- circular knife slitting
- automatic correction of unwinding
- rewinding and anti-static function
- independent waste edge collection device and negative pressure waste collection device
1) Clean compressed air free from moisture, dirt and oil
2) Pressure (entering the device interface): Approx. 5-6 bar gauge
| Substrate | OPP, PET |
| Substrate Width | 1000-1650mm |
| Slitting width | 250-1650 mm |
| Electricity | 3 phase * 380 volt *50Hz |
| Unwind diameter | max. 450mm |
| Rewind diameter | max. 450mm |
| Speed | max.150m/min |
| PLC | Germany Beckhoff |
| Operation screen | Colorful touch screen |
| Power supply | AC380V, 50Hz, 3P |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
OUR FACTORY
OUR WORKSHOP
OUR CUSTOMER
FAQ
Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q3: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q4: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q5: Payment Terms
A: TT 30% in advance, 70% before shipment.
Q6: Machine installation
A: We could assign the technician to the place for the on-site installation if requested by the purchaser.
