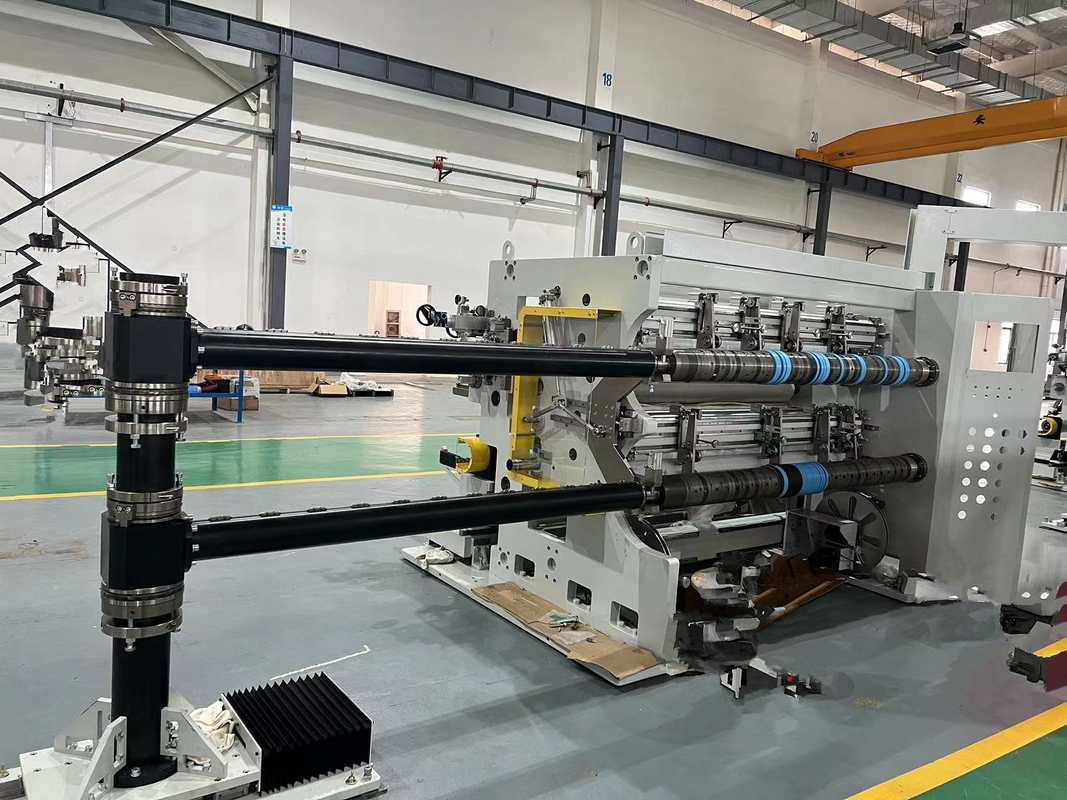

PLC Control Slitter Rewinder Machine Rewind Diameter Max. 450mm

DSP Series Slitter Rewinder Machine​

The high-performance slitter Rewinder Machine is professionally used in composite current collector materials such as PET and OPP.

• Function

- Horizontal movement and front-mounted rewinding method

- Large-screen touch-type human-machine operating system

- CNC unwinding and rewinding AC servo drive

- circular knife slitting

- automatic correction of unwinding

- rewinding and anti-static function

- independent waste edge collection device and negative pressure waste collection device

• Description

A. Unwind Device

B. Slitting Device

C. Rewind Device

D. Transmission Control

E. Electrical Control

1) Main electrical control box

2) Operation screen

3) The main components of the equipment are all from internationally renowned brands such as Beckhoff, LS, SMC, SKF, Muller, Phoenix, etc.

• Electricity

A. 3phase x 380 volt x 50 Hz

B. Connected power: approx. 20 kVA

C. Average consumption: approx. 15 kW

D. Voltage variation: <±5%

• Compressed air

A. Clean compressed air free from moisture, dirt and oil

B. Pressure (entering the device interface):  Approx. 5-6 bar gauge

• Technical Data

Competitive Advantages

1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.

OUR WORKSHOP

OUR CUSTOMER

FAQ

Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.

Q2: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.

Q3: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.

Q4: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

Q5: Payment Terms
A: TT 30% in advance, 70% before shipment.
