Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSL
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: Wooden Case
Delivery Time: Around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Substrate Thickness: |
5-30μm |
Substrate Width: |
300mm - 1200mm |
Unwinding Diameter: |
600mm |
Rewinding Diameter: |
350mm |
Working Speed: |
150m / Min |
Operation Screen: |
Colourful Touch Screen |
Warranty: |
12 Months |
Substrate Thickness: |
5-30μm |
Substrate Width: |
300mm - 1200mm |
Unwinding Diameter: |
600mm |
Rewinding Diameter: |
350mm |
Working Speed: |
150m / Min |
Operation Screen: |
Colourful Touch Screen |
Warranty: |
12 Months |

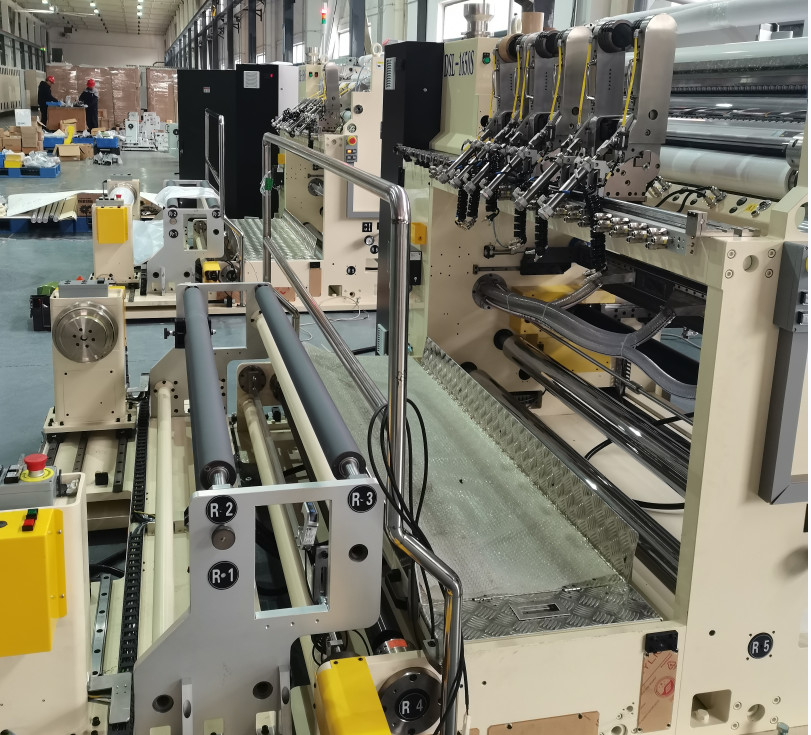

DSL Series Independent Arm Slitter Rewinder Machine
The products which produced by DST Independent Arm Slitter Rewinder Machine are mainly used as
battery films, and are widely used in industries such as electronics, hybrid vehicles, wind power
generation, locomotives, and lithium batteries. The technical features mainly include curling algorithm,
winding pressure control, electrostatic elimination technology, film release correction tracking technology,
etc.
Releasing film on the unwinding side
Cutting the film on the cutter shaft
Collecting film on the unwinding side
| Substrate | OPP, PET etc |
| Substrate Width | 300mm-1200mm |
| Slitting width | min 4.5 mm |
| Electricity | 3 phase * 200 volt *60Hz |
| Unwinding diameter | 600mm |
| Rewinding diameter. | 350mm |
| Mechanical Speed | 300m/min |
| Control | PLC |
| Operation screen | Colorful touch screen , HMI |
| Power supply | AC380V, 50Hz, 3Phase |
1. We offer high quality products;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q2: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.
Q3: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q4: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q5: Payment Terms
A: TT 30% in advance, 70% before shipment.
Q6: Machine installation
A: We could assign the technician to the place for the on-site installation if requested by the purchaser.
