Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSL
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
PLC: |
Beckhoff Germany |
Substrate Thickness: |
7.0μm~30μm |
Substrate Width: |
500mm - 1250mm |
Unwinding Dia.: |
Max. 450mm |
Unwinding Electric Driver: |
Korea LS-L7N |
Unwinding Servo Driver: |
Korea LS-APM |
Mechanical Speed: |
Max. 200m / Min |
Slitting Device: |
Straight Knife Cutting Or Round Knife Cutting |
PLC: |
Beckhoff Germany |
Substrate Thickness: |
7.0μm~30μm |
Substrate Width: |
500mm - 1250mm |
Unwinding Dia.: |
Max. 450mm |
Unwinding Electric Driver: |
Korea LS-L7N |
Unwinding Servo Driver: |
Korea LS-APM |
Mechanical Speed: |
Max. 200m / Min |
Slitting Device: |
Straight Knife Cutting Or Round Knife Cutting |

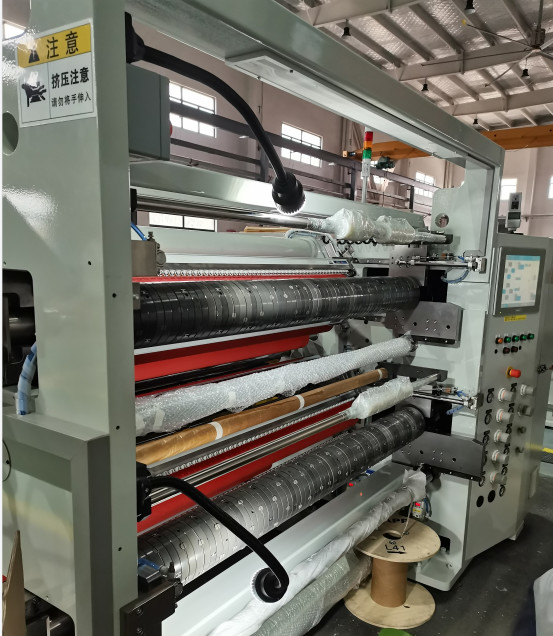

DSL Series Slitter Rewinder Machine
Slitter Rewinder Machine is professionally used in materials such as lithium-ion battery separators.
It mainly includes the following basic functions:
-Horizontal movement and front winding method
-A large touchscreen human-machine operating system
-CNC AC servo drive for unwinding and rewinding
-CNC AC servo drive for unwinding and rewinding
-Automatic unwinding correction
-One winding and anti-static function
-Security measures
-One reserved installation location for defect detection
| Substate Thickness | 7-30μm |
| Substrate Width | 500-1250mm |
| Slitting Width | Min. 30mm |
| Electricity | 380V 50HZ 3Phase |
| Unwinding diameter | Max. 450mm |
| Winding diameter | Max. 300mm |
| Mechanical Speed | Max.200m/min |
| PLC | Beckhoff Germany |
| Operation screen | Colorful touch screen , HMI |
| Power supply | AC380V, 50Hz, 3Phase |
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Q1: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.
Q2: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q3: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q4: Payment Terms
A: TT 30% in advance, 70% before shipment.
