Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSL-1000U
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Substrate Thickness: |
OPP. 2.0mu – 15mu ; PET.0.8mu – 12mu |
Substrate Width: |
500mm - 1100mm |
Unwinding Dia: |
Max. 660mm |
Winding Dia.: |
Max. 360mm |
Speed: |
Max. 550m / Min |
Size: |
2000mm(L) X 2300mm(W) X 1,500mm(H) |
PLC: |
Customizable |
Tension Sensor: |
Customizable |
DC24V Power Supply: |
Customizable |
Electricity: |
3 Phase * 200 Volt *60Hz |
Substrate: |
BOPP,PET,etc |
Color: |
RAL 7025 For The Frame |
Substrate Thickness: |
OPP. 2.0mu – 15mu ; PET.0.8mu – 12mu |
Substrate Width: |
500mm - 1100mm |
Unwinding Dia: |
Max. 660mm |
Winding Dia.: |
Max. 360mm |
Speed: |
Max. 550m / Min |
Size: |
2000mm(L) X 2300mm(W) X 1,500mm(H) |
PLC: |
Customizable |
Tension Sensor: |
Customizable |
DC24V Power Supply: |
Customizable |
Electricity: |
3 Phase * 200 Volt *60Hz |
Substrate: |
BOPP,PET,etc |
Color: |
RAL 7025 For The Frame |

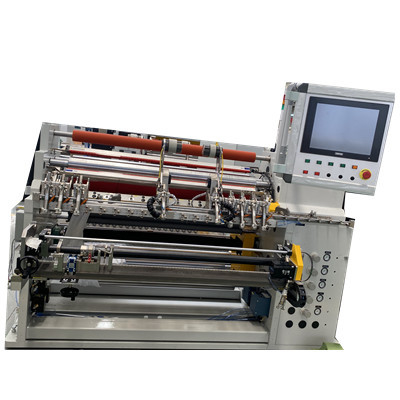

1. This type of slitting machine is an ideal model for slitting all kinds of paper, such as self-adhesive paper, kraft paper and so on.
2. The whole machine is centrally controlled by PLC and operated by touch screen man-machine interface.
3. Magnetic powder brake is adopted for unwinding, and the coil diameter is automatically calculated by PLC to realize constant tension control.
4. The winding is driven by variable frequency motor to realize constant linear speed control by PLC.
5. The loading and unloading of the winding adopts hydraulic lifting type, which is suitable for the workshop without crane, which can save manpower and shorten the loading and unloading time.
6. EPC deviation correction device is adopted for unwinding, which can accurately control the neat accuracy of material edges, and photoelectric or gas sensitive deviation correction is optional.
7. The PLC computer system has the functions of starting buffer, stopping anti loosening, meter counting, speed counting, winding diameter calculation and so on.
Technical Data
| Substrate | OPP 2 - 12um |
| Substrate Width | 500-920mm |
| Slitting width | min 4.5 mm |
| Electricity | 3 phase * 200 volt *60Hz |
| Unwinding diameter | max. 650mm |
| Winding dia. | max. 350mm |
| Speed | max.500m/min |
| PLC | Beckhoff Germany |
| Operation screen | Colorful touch screen , HMI |
| Power supply | AC380V, 50Hz,three phase current |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Our Factory
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
