Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSL-1000U
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Substrate Thickness: |
OPP. 2.0mu – 15mu ; PET.0.8mu – 12mu |
Substrate Width: |
500mm - 1100mm |
Winding Dia.: |
Max. 360mm |
Speed: |
Max. 550m / Min |
Size: |
2000mm(L) X 2300mm(W) X 1,500mm(H) |
Tension Sensor: |
Customizable |
DC24V Power Supply: |
Customizable |
Electricity: |
3 Phase * 200 Volt *60Hz |
Substrate: |
BOPP,PET,etc |
Color: |
RAL 7025 For The Frame |
PLC: |
Customizable |
Unwinding Dia: |
Max. 660mm |
Substrate Thickness: |
OPP. 2.0mu – 15mu ; PET.0.8mu – 12mu |
Substrate Width: |
500mm - 1100mm |
Winding Dia.: |
Max. 360mm |
Speed: |
Max. 550m / Min |
Size: |
2000mm(L) X 2300mm(W) X 1,500mm(H) |
Tension Sensor: |
Customizable |
DC24V Power Supply: |
Customizable |
Electricity: |
3 Phase * 200 Volt *60Hz |
Substrate: |
BOPP,PET,etc |
Color: |
RAL 7025 For The Frame |
PLC: |
Customizable |
Unwinding Dia: |
Max. 660mm |
120mm Slitting Rewinder Machine 500mm Film Slitting Machine 5500mm Automatic Slitting Machine

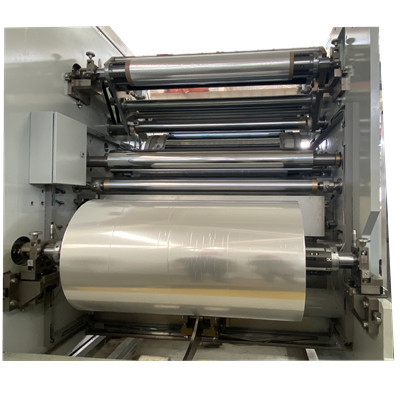

Automatic High Speed Film Slitting Rewinding Machine Servo Motor Driven Slitter Rewinder Machine
1. The slitter rewinder machine stable running speed is 500 to 600 meters per minute.
2. Siemens PLC control the machine running system.
3. Total four sets servo motors installed in the machine. Unwinding unit tension independent controlled by the servo motor. The two rewinding shaft also driven by two independent servo motors which ensure the better rewinding tension controls and reach better rewinding rolls quality.
4. The mother roll loading system adopt the pneumatic shaft less chucks. The unloading system has the pusher device to unload the finished material rolls to the turret. It is easy to operate the machine by only one person.
5. The machine have two types slitting unit,razor knives and circle knives for various material rolls. They are optional. You
also can have both in one machine.
6. The machine rewinding shaft adopt the multi function and high precision pneumatic friction shaft,which has better rewinding tension control performance.
7. It is equipped with the splice table. Operator can convenient to connect material web.
Technical Data
| Substrate | OPP 2 - 12um |
| Substrate Width | 500-920mm |
| Slitting width | min 4.5 mm |
| Electricity | 3 phase * 200 volt *60Hz |
| Unwinding diameter | max. 650mm |
| Winding dia. | max. 350mm |
| Speed | max.500m/min |
| PLC | Beckhoff Germany |
| Operation screen | Colorful touch screen , HMI |
| Power supply | AC380V, 50Hz,three phase current |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Our Factory
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
