Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSC-1000U
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 6 sets in 4 months
Substrate: |
OPP. 2.0mic – 15mic ; PET. 2.7mic – 15mic |
Substrate Width: |
500mm - 1000mm |
Unwinding Dia: |
Max. 650mm |
Winding Dia.: |
Max. 350mm |
Speed: |
Max. 500m / Min |
Size: |
2200mm(L) X 2300mm(W) X 1,500mm(H) |
PLC: |
Beckhoff |
Tension Sensor: |
E+L |
DC24V Power Supply: |
Siemens |
Electricity: |
3 Phase * 200 Volt *60Hz |
Color: |
RAL 7035 For The Frame |
Substrate: |
OPP. 2.0mic – 15mic ; PET. 2.7mic – 15mic |
Substrate Width: |
500mm - 1000mm |
Unwinding Dia: |
Max. 650mm |
Winding Dia.: |
Max. 350mm |
Speed: |
Max. 500m / Min |
Size: |
2200mm(L) X 2300mm(W) X 1,500mm(H) |
PLC: |
Beckhoff |
Tension Sensor: |
E+L |
DC24V Power Supply: |
Siemens |
Electricity: |
3 Phase * 200 Volt *60Hz |
Color: |
RAL 7035 For The Frame |
50um Roll Slitting Machine 500mm Film Slitting Machine 380v Auto Slitting Machine 1000mm Slitter Rewinder Machine

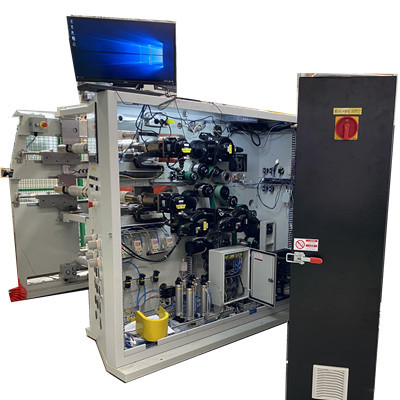

Automatic High Speed Film Slitting Rewinding Machine Servo Motor Driven Slitter Rewinder Machine
Product Description
Product description
This machine is a variety of plastic packaging films specially designed for senior customers. The complete servo control system helps the machine realize accurate tension control and stable operation. Automatic functions, such as tool position and finished roll unloading, can be used as optional functions. The performance of the machine is in line with European and American manufacturing, and the price is highly competitive in the market.
Automatic control;
Manual large screen;
HMI color touch screen manual control;
Screen functions: switch, slitting setting, position setting, calibration, I / O operation, status display, fault display, etc.
Features
Technical Data
| Substrate | OPP 2 - 12um |
| Substrate Width | 500-920mm |
| Slitting width | min 4.5 mm |
| Electricity | 3 phase * 200 volt *60Hz |
| Unwinding diameter | max. 650mm |
| Winding dia. | max. 350mm |
| Speed | max.500m/min |
| PLC | Beckhoff Germany |
| Operation screen | Colorful touch screen , HMI |
| Power supply | AC380V, 50Hz,three phase current |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Our Factory
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q :Where is your factory located? Can I visit it before I place an order?
A: Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
