Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: PRODUCTION LINE
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 8 months
Payment Terms: T/T
Supply Ability: Two sets in 8 months
Casting Film Thickness: |
400~3200um |
Finished Film Thickness: |
50～300um |
Casting Film Width: |
1450mm |
Finished Film Width: |
4700mm |
Touch Screen: |
Siemens |
Bus Mode: |
PROFINET ,PROFIBUS DP |
PLC: |
SIEMENS |
Warranty: |
12 Months |
Place Of Origin: |
Anhui,China |
Winding Diameter: |
Max φ1200 Mm |
Core Components: |
Bearing, Motor, Pump, PLC |
Main Extruder Output: |
Max 4000 Kg/h |
Control: |
PLC+Touch Screen |
Final Product: |
Plastic Film |
Substrate Width: |
1000mm-4500mm |
Casting Film Thickness: |
400~3200um |
Finished Film Thickness: |
50～300um |
Casting Film Width: |
1450mm |
Finished Film Width: |
4700mm |
Touch Screen: |
Siemens |
Bus Mode: |
PROFINET ,PROFIBUS DP |
PLC: |
SIEMENS |
Warranty: |
12 Months |
Place Of Origin: |
Anhui,China |
Winding Diameter: |
Max φ1200 Mm |
Core Components: |
Bearing, Motor, Pump, PLC |
Main Extruder Output: |
Max 4000 Kg/h |
Control: |
PLC+Touch Screen |
Final Product: |
Plastic Film |
Substrate Width: |
1000mm-4500mm |

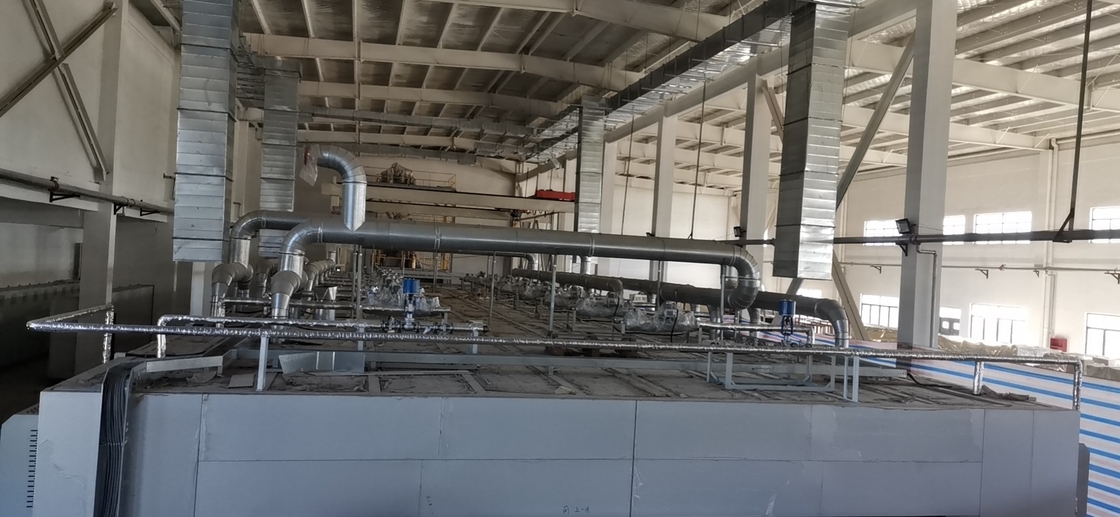

Electric Heating Method BOPET Film Production Line 1000mm-4500mm BOPP Film Production Line
Product Description
Die head:
The melt from the main and auxiliary extrusion flows into the die head through the feed block of the die head. The die head is a coat hanger type T-shape. If the fully automatic die head is adopted, the opening of the lip can be accurately adjusted through the thermal expansion bolt. The melt channel of die head should be smooth and streamlined. The die body is installed on the heavy and stable beam to reduce the vibration of the die. The top of the die head is equipped with an exhaust hood, which is used to remove the heat of the melt and low molecular volatile matter, and the exhaust pipe is connected to the outside.
Technical Data
| Casting film Thickness | 400~3200um |
| Finished film thickness | 50～300um |
| Casting film width | 1450mm |
| Finished film width | 4700mm |
| MD ratio | 1:1—1:4 |
|
TD ratio |
1:2—1: 5 |
| Production speed | max140m / min |
| Main Extruder output | max 4000 kg/h
|
| Sub Extruder output | max 1000 kg/h |
| Winding diameter | max φ1200 mm |
Major Function
. Bidirectional & simultaneous stretching
. PLC central control
. Longitudinal-stretching free
. Adjustable ratio of bidirectional stretching
. Auto rewinding
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Our Factory
Our customers
FAQ
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
