Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: PRODUCTION LINE
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 8 months
Payment Terms: T/T
Supply Ability: Two sets in 8 months
Casting Film Thickness: |
400~3200um |
Finished Film Thickness: |
50～300um |
Casting Film Width: |
1450mm |
Finished Film Width: |
4700mm |
MD Ratio: |
1:1—1:4 |
TD Ratio: |
1:2—1: 5 |
PLC: |
SIEMENS |
Core Components: |
Bearing, Motor, Pump, PLC |
Winding Diameter: |
Max φ1200 Mm |
Main Extruder Output: |
Max 4000 Kg/h |
Bus Mode: |
PROFINET ,PROFIBUS |
Touch Screen: |
Siemens |
Casting Film Thickness: |
400~3200um |
Finished Film Thickness: |
50～300um |
Casting Film Width: |
1450mm |
Finished Film Width: |
4700mm |
MD Ratio: |
1:1—1:4 |
TD Ratio: |
1:2—1: 5 |
PLC: |
SIEMENS |
Core Components: |
Bearing, Motor, Pump, PLC |
Winding Diameter: |
Max φ1200 Mm |
Main Extruder Output: |
Max 4000 Kg/h |
Bus Mode: |
PROFINET ,PROFIBUS |
Touch Screen: |
Siemens |

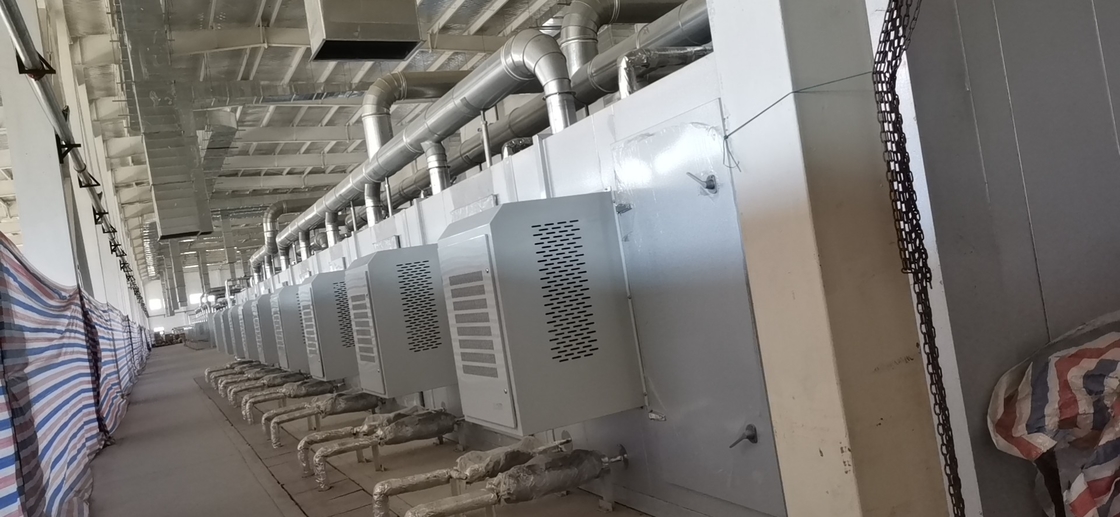

4200kg/H Extrusion Volume BOPET Film Production Line Chinese Professional Film Production Line Manufacturer
Product Description
The main functions of the workshop monitoring layer of BOPET production line are as follows:
(1) Collect the data of the production line and each control unit, and display them on each monitoring screen of the central control room display;
(2) Send all kinds of control commands to the control units of the production line, and modify the production process parameters;
(3) Monitor and record all kinds of fault alarms, generate and print all kinds of reports;
(4) Establish and save various recipes and related parameters.
Technical Data
| Casting film Thickness | 400~3200um |
| Finished film thickness | 50～300um |
| Casting film width | 1450mm |
| Finished film width | 4700mm |
| MD ratio | 1:1—1:4 |
|
TD ratio |
1:2—1: 5 |
| Production speed | max140m / min |
| Main Extruder output | max 4000 kg/h
|
| Sub Extruder output | max 1000 kg/h |
| Winding diameter | max φ1200 mm |
Major Function
. Bidirectional & simultaneous stretching
. PLC central control
. Longitudinal-stretching free
. Adjustable ratio of bidirectional stretching
. Auto rewinding
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Our Factory
Our customers
FAQ
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
