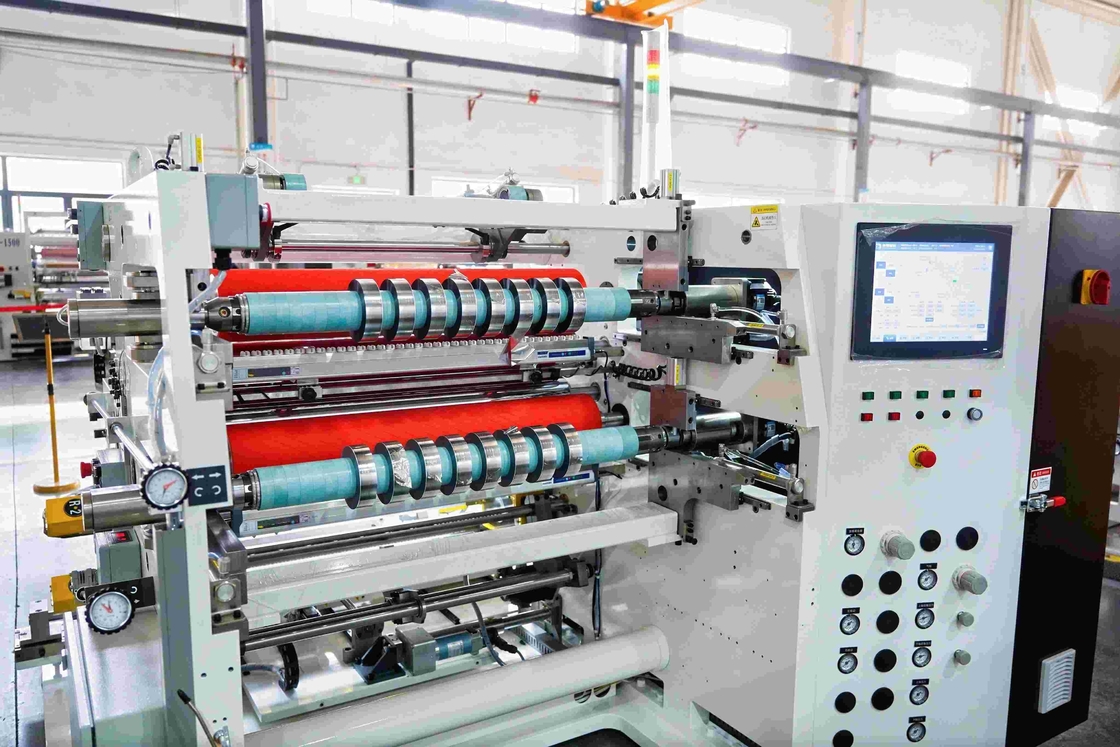

Rewinder Machine Substrate PET+Cu OPP+Cu length cutting machine

DSP Series Slitting Rewinder Machine​

The high-performance slitting Rewinder Machine is professionally used in composite current collector materials such as PET+CU and OPP+CU etc.

• Description

A. Unwinding Device

B. Slitting Device

Type: Circular knife slitting method, Upper circular cutter shaft is independently driven with adjustable speed

C. Rewinding Device

Type, Slip Shaft, Tension control, Touch Pressure, Remove static electricity, Meter accuracy

D. Transmission Control

Drive, Flattening Roller, Touch Roller, Guiding Roller

E. Electrical Control

1) Main electrical control box

2) Operation screen

3) The main components of the equipment are all from internationally renowned brands such as Beckhoff, LS, SMC, SKF, Muller, Phoenix, etc.

     Equipment Schematic Diagram

• Service

A. Power Supply

1) AC380V, 50Hz, 3Phase

2) Connection efficiency: Approx. 20KVA

3) Average consumption: Approx. 15KVA

4) Voltage variation range: +/- 5%

B. Compressed air

1) Oil-free and water-free clean compressed air

2) Pressure (into the device interface)

C. Device positioning

1) After the equipment is adjusted to be level, fix it with a pressure plate and expansion bolts.

2) Ground load-bearing requirements(kg/m2):≥2000 kg/m2

• Technical Data

Competitive Advantages

1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.

OUR WORKSHOP

OUR CUSTOMER

FAQ

Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.

Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

Q: Payment Terms
A: TT 30% in advance, 70% before shipment.
