Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSP1800
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Product Name: |
Slitting Rewinder Machine |
Substrate: |
PET+Cu, OPP+Cu, PET+Al, PET, OPP |
The Length Of Unwinding Core: |
1200mm~1800mm |
Scrap Edge Width: |
Min. 10mm |
Unwinding Diameter: |
Max. 450mm |
Rewinding Diameter: |
Max.450mm |
Mechanical Speed: |
Max. 150m / Min |
Working Speed: |
Max. 80m / Min |
Dimension: |
2850x3900x1900mm |
Brand: |
DST |
Origin: |
China |
Product Name: |
Slitting Rewinder Machine |
Substrate: |
PET+Cu, OPP+Cu, PET+Al, PET, OPP |
The Length Of Unwinding Core: |
1200mm~1800mm |
Scrap Edge Width: |
Min. 10mm |
Unwinding Diameter: |
Max. 450mm |
Rewinding Diameter: |
Max.450mm |
Mechanical Speed: |
Max. 150m / Min |
Working Speed: |
Max. 80m / Min |
Dimension: |
2850x3900x1900mm |
Brand: |
DST |
Origin: |
China |

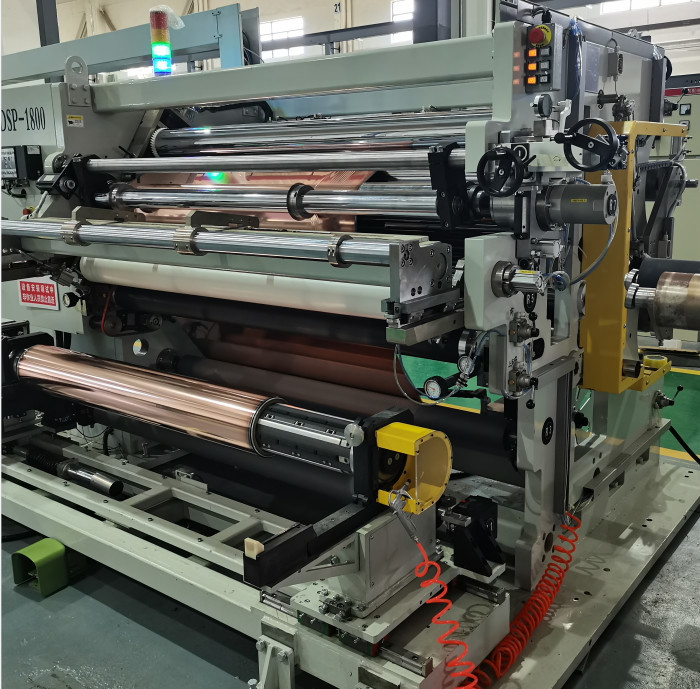

DSP Series Slitting Rewinder Machine
The high-performance Slitting Rewinder Machine is professionally used in composite current collector materials such as PET+Cu, OPP+Cu, PET+Al etc.
A. Unwinding Device
B. Slitting Device
Type: Circular knife slitting method, Upper circular cutter shaft is independently driven with adjustable speed
C. Rewinding Device
Type, Slip Shaft, Tension control, Touch Pressure, Remove static electricity, Meter accuracy
D. Transmission Control
Drive, Flattening Roller, Touch Roller, Guiding Roller
E. Electrical Control
A. Power Supply
1) AC380V, 50Hz, 3Phase
2) Connection efficiency: Approx. 20KVA
3) Average consumption: Approx. 15KVA
4) Voltage variation range: +/- 5%
B. Compressed air
1) Oil-free and water-free clean compressed air
2) Pressure (into the device interface)
C. Device positioning
1) After the equipment is adjusted to be level, fix it with a pressure plate and expansion bolts.
2) Ground load-bearing requirements(kg/m2):≥2000 kg/m2
D. Environmental requirements
1)Temperature: 25+/-10℃
2)Humidity: Max. 75% at 20℃, Max. 50% at 30℃ (No condensation)
Cleanliness: No dust, oil, odor, garbage, etc. in the environment
| Substrate | PET+Cu, OPP+Cu, PET+Al, PET, OPP |
| Substrate Width | 1000mm~1650mm |
| Mechanical Speed | Max. 150m / min |
| Slitting Width | 250mm-1650mm |
| Substrate Thickness | 3μm-12μm |
| Rewind diameter | Max. 450mm |
| PLC | Germany Beckhoff |
| Electricity | 3 phase * 380 volt *50Hz |
OUR WORKSHOP
OUR CUSTOMER
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q: Payment Terms
A: TT 30% in advance, 70% before shipment.
