Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSP1800
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: Wooden Case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 2 sets in 4 months
Product Name: |
Slitting Rewinder Machine |
Substrate: |
PET+Cu, OPP+Cu |
Substrate Thickness: |
3μm-12μm |
Slitting Width: |
250mm-1650mm |
Scrap Edge Width: |
Min. 10mm |
Unwinding Diameter: |
Max. 450mm |
Working Speed: |
Max. 80m / Min |
Power Supply: |
AC380V, 50Hz, 3Phase |
Operation Screen: |
Colorful Touch Screen |
Payment: |
TT |
Logo: |
DST |
Origin: |
China |
Product Name: |
Slitting Rewinder Machine |
Substrate: |
PET+Cu, OPP+Cu |
Substrate Thickness: |
3μm-12μm |
Slitting Width: |
250mm-1650mm |
Scrap Edge Width: |
Min. 10mm |
Unwinding Diameter: |
Max. 450mm |
Working Speed: |
Max. 80m / Min |
Power Supply: |
AC380V, 50Hz, 3Phase |
Operation Screen: |
Colorful Touch Screen |
Payment: |
TT |
Logo: |
DST |
Origin: |
China |

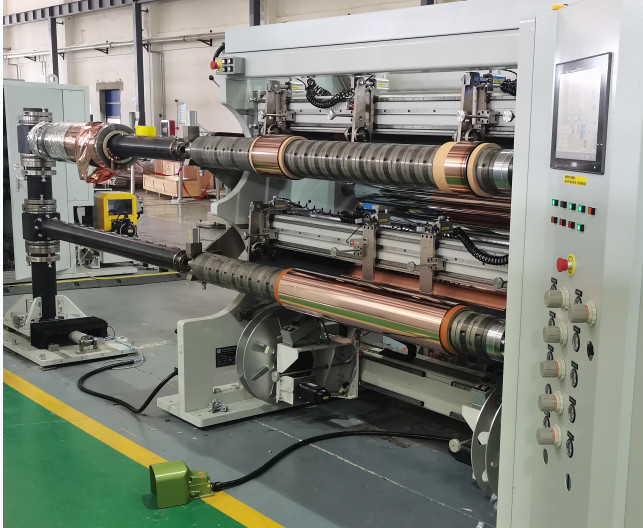

DSP Series Slitting Rewinder Machine
The high-performance Slitting Rewinder Machine is professionally used in composite current collector materials such as PET+Cu and OPP+Cu etc.
A. Unwinding Device
B. Slitting Device
Type: Circular knife slitting method, Upper circular cutter shaft is independently driven with adjustable speed
C. Rewinding Device
Type, Slip Shaft, Tension control, Touch Pressure, Remove static electricity, Meter accuracy
D. Transmission Control
Drive, Flattening Roller, Touch Roller, Guiding Roller
E. Electrical Control
1) Main electrical control box
2) Operation screen
3) The main components of the equipment are all from internationally renowned brands such as Beckhoff, LS, SMC, SKF, Muller, Phoenix, etc.
A. Power Supply
1) AC380V, 50Hz, 3Phase
2) Connection efficiency: Approx. 20KVA
3) Average consumption: Approx. 15KVA
4) Voltage variation range: +/- 5%
B. Compressed air
1) Oil-free and water-free clean compressed air
2) Pressure (into the device interface)
C. Device positioning
After the equipment is adjusted to be level, fix it with a pressure plate and expansion bolts.
D. Environmental requirements
1)Temperature: 25+/-10℃
2)Humidity: Max. 75% at 20℃, Max. 50% at 30℃ (No condensation)
| Substrate | PET+Cu, OPP+Cu |
| Substrate Width | 1000mm~1650mm |
| Mechanical Speed | Max. 150m / min |
| Slitting Width | 250mm-1650mm |
| Substrate Thickness | 3μm-12μm |
| Rewind diameter | Max. 450mm |
| PLC | Germany Beckhoff |
| Electricity | 3 phase * 380 volt *50Hz |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
OUR WORKSHOP
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.
Q: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q: Payment Terms
A: TT 30% in advance, 70% before shipment.
Q: Machine installation
A: We could assign the technician to the place for the on-site installation if requested by the purchaser.
