Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSP1800
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Product Name: |
Slitting Rewinder Machine |
Substrate: |
PET+Cu, OPP+Cu |
Substrate Width: |
1000mm~1650mm |
Scrap Edge Width: |
Min. 10mm |
Rewinding Diameter: |
Max.450mm |
Working Speed: |
Max. 80m / Min |
Color: |
White |
Operation Screen: |
Colorful Touch Screen |
Certification: |
ISO 9000 |
Packing: |
Wooden Case |
PLC: |
Germany Beckhoff |
Product Name: |
Slitting Rewinder Machine |
Substrate: |
PET+Cu, OPP+Cu |
Substrate Width: |
1000mm~1650mm |
Scrap Edge Width: |
Min. 10mm |
Rewinding Diameter: |
Max.450mm |
Working Speed: |
Max. 80m / Min |
Color: |
White |
Operation Screen: |
Colorful Touch Screen |
Certification: |
ISO 9000 |
Packing: |
Wooden Case |
PLC: |
Germany Beckhoff |

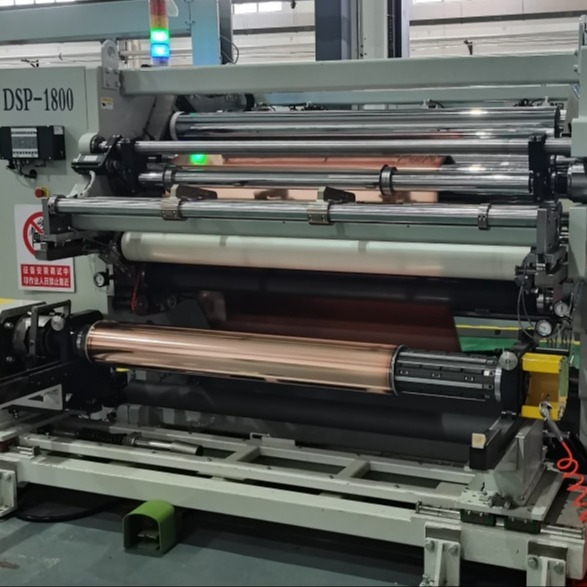

DSP Series Slitting Rewinder Machine
The high-performance DSP Series Slitting Rewinder Machine is professionally used in composite current collector materials such as PET+Cu and OPP+Cu etc.
A. Unwinding Device
B. Slitting Device
Type: Circular knife slitting method, Upper circular cutter shaft is independently driven with adjustable speed
C. Rewinding Device
D. Transmission Control
Drive, Flattening Roller, Touch Roller, Guiding Roller
E. Electrical Control
1) Main electrical control box
2) Operation screen
3) The main components of the equipment are all from internationally renowned brands such as Beckhoff, LS, SMC, SKF, Muller, Phoenix, etc.
1. Horizontal movement and front-end winding method
2. Large touch screen human-machine operating system
3. Unwinding and rewinding CNC AC servo drive
4. Circular knife slitting
5. Automatic unwinding correction
6. Anti-static function for winding
7. Independent waste collection device and negative pressure waste collection device
| Substrate | PET+Cu, OPP+Cu |
| Substrate Width | 1000mm~1650mm |
| Mechanical Speed | Max. 150m / min |
| Slitting Width | 250mm-1650mm |
| Substrate Thickness | 3μm-12μm |
| Rewind diameter | Max. 450mm |
| PLC | Germany Beckhoff |
| Electricity | 3 phase * 380 volt *50Hz |
OUR WORKSHOP
OUR CUSTOMER
FAQ
Q: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q: Payment Terms
A: TT 30% in advance, 70% before shipment.
