Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSC-1000U
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Product Name: |
Slitting Rewinder Machine |
Substrate: |
OPP |
Substrate Width: |
550mm - 920mm |
Substrate Thickness: |
2.0μm-12μm |
Rewind Diameter: |
Max. 350mm |
Rewind Width: |
4.5mm-150mm |
Leave Margin: |
Min. 0.5mm |
Production Speed Of Straight Knife: |
50~350m / Min |
Inner Diameter Of Rewind Core: |
76mm |
Color: |
White Or Customized |
Power Supply: |
380V 50Hz 3Phase |
Working Speed: |
500m / Min |
Weight: |
5500Kg |
Product Name: |
Slitting Rewinder Machine |
Substrate: |
OPP |
Substrate Width: |
550mm - 920mm |
Substrate Thickness: |
2.0μm-12μm |
Rewind Diameter: |
Max. 350mm |
Rewind Width: |
4.5mm-150mm |
Leave Margin: |
Min. 0.5mm |
Production Speed Of Straight Knife: |
50~350m / Min |
Inner Diameter Of Rewind Core: |
76mm |
Color: |
White Or Customized |
Power Supply: |
380V 50Hz 3Phase |
Working Speed: |
500m / Min |
Weight: |
5500Kg |
DSC Series Slitting Rewinder Machine

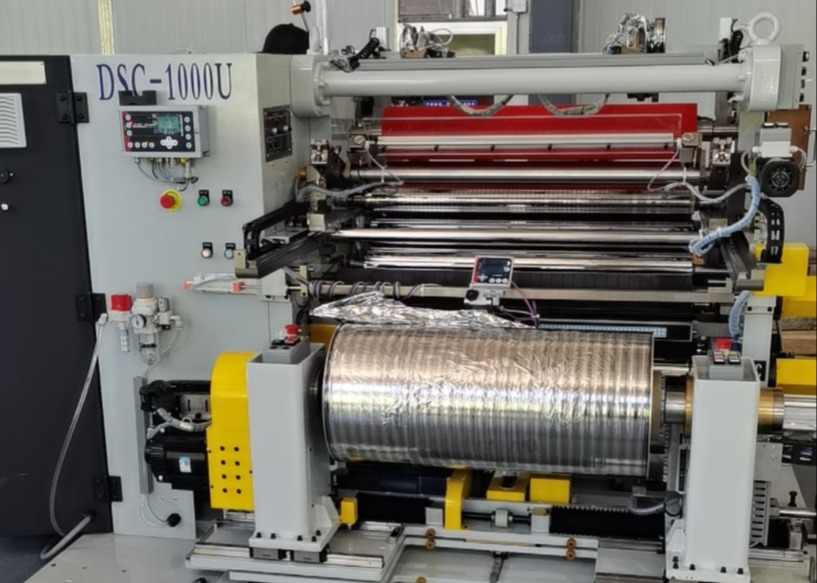

DSC-1000U Slitting Rewinder Machine is mainly used for the slitting production of ultra-thin metallized films for capacitors. It mainly completes the process of unwinding the original wide roll of metallized film, passing through the transmission mechanism and slitting mechanism, slitting it into capacitor metallized films of different sizes and widths, and completing the rewinding process.
1. Unwinding Component
2. Web Guiding Component
3. Tension Control System
4. Flattening Roller Mechanism
5. Straight Knife Slitting Component
6. Driving Roller Mechanism
7. Rewinding Component
8. Scrap Collection Mechanism
9. Anti-Static Unit
1. Electrical Control
2. Touch Screen For Visualization And Operation
3. Other Function
1. Electrical: AC380V/50HZ 18KVA, Power: 12KW
2. Compressed Air: Inlet Pipe is 12mm, air Pressure is 0.5~0.7Mpa adjustable, gas consumption about 50L/H/PCS
3. The estimated Gross Weight: 5000KG
| Substrate Thickness | 2.0μm~12μm |
| Substrate Width | 550-920mm |
| Inner Diameter Of Rewind Core | 76mm |
| Electricity | 3 phase * 380 volt *50Hz |
| Rewind Width | 4.5mm~150mm |
| Rewind diameter | max. 350mm |
| Production Speed Of Wave Knife | 50~200m/min |
| PLC | Germany Beckhoff |
| Computer | Dell |
| Power supply | AC380V, 50Hz, 3P |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
OUR FACTORY
OUR WORKSHOP
OUR CUSTOMER
FAQ
Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q2: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.
Q3: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q4: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q5: Payment Terms
A: TT 30% in advance, 70% before shipment.
Q6: Machine installation
A: We could assign the technician to the place for the on-site installation if requested by the purchaser.
