Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSC
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Product Name: |
Slitting Rewinder Machine |
Substrate Width: |
Max. 1350mm |
Substrate Thickness: |
Max. 50μm |
Unwind Diameter: |
Max. 500mm |
Rewind Diameter: |
Max. 300mm |
Working Speed: |
Max. 150m Per Min |
Dimension: |
2650x2200x1550mm |
Certificate: |
ISO9000 |
Unwinding Core: |
Max. 1500mm Length |
PLC: |
Germany Beckhoff |
Substrate Thickness 7-50μm Substrate Width 500-150mm Slitting Width Min. 40mm Electricity: |
3 Phase * 380 Volt *50Hz |
Product Name: |
Slitting Rewinder Machine |
Substrate Width: |
Max. 1350mm |
Substrate Thickness: |
Max. 50μm |
Unwind Diameter: |
Max. 500mm |
Rewind Diameter: |
Max. 300mm |
Working Speed: |
Max. 150m Per Min |
Dimension: |
2650x2200x1550mm |
Certificate: |
ISO9000 |
Unwinding Core: |
Max. 1500mm Length |
PLC: |
Germany Beckhoff |
Substrate Thickness 7-50μm Substrate Width 500-150mm Slitting Width Min. 40mm Electricity: |
3 Phase * 380 Volt *50Hz |
DSL Series Slitter Rewinder Machine
DSL-1500 high-performance CNC Slitting Rewinder Machine is professionally used for materials such as lithium-ion battery separators.
-Horizontal movement and front-end winding mode

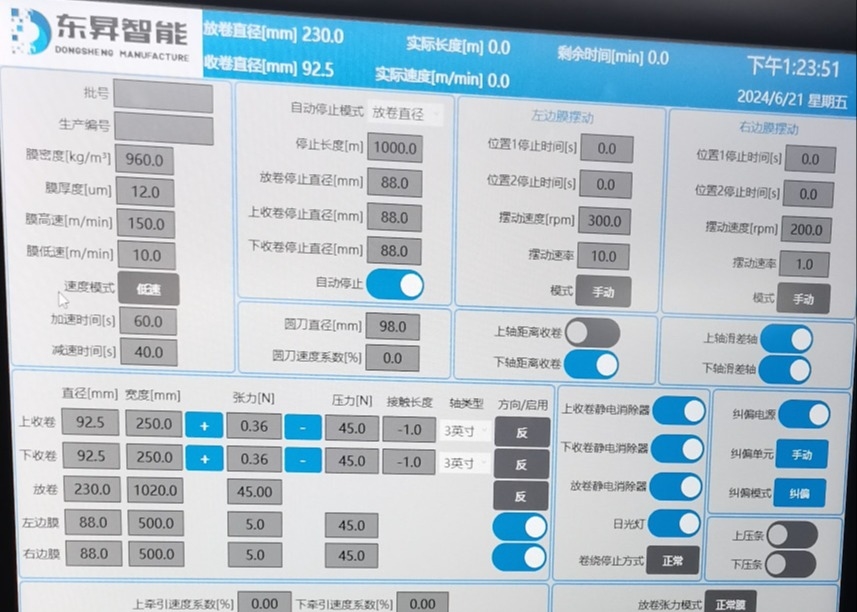

-A large touch screen human-machine operating system
-Unwinding and rewinding CNC AC servo drive
-Horizontal movable electric control knife holder slitting mode straight knife standard configuration, circular knife option.
-Unwinding automatic deviation correction
-Rewinding anti-static function
1) 3 phase x 380 volt x 50 Hz
2) Connected power: approx. 20 kVA
3) Average consumption: approx. 15 kW
4) Voltage variation: <±5%
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
OUR FACTORY
OUR WORKSHOP
OUR CUSTOMER
FAQ
Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q2: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.
Q3: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q4: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q5: Payment Terms
A: TT 30% in advance, 70% before shipment.
Q6: Machine installation
A: We could assign the technician to the place for the on-site installation if requested by the purchaser.
