Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSL-1500
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Product Name: |
Slitting Rewinder Machine |
Max. Substrate Width: |
1350mm |
Max. Substrate Thickness: |
50μm |
Max. Unwind Diameter: |
500mm |
Max. Rewind Diameter: |
300mm |
Min. Slitting Width: |
40mm |
Max. Working Speed: |
150m / Min |
Dimension: |
2650x2200x1550mm |
Color: |
White Or Customized |
Power Supply: |
380V 50Hz 3Phase |
Unwinding Core: |
500mm-1500mm Length |
Product Name: |
Slitting Rewinder Machine |
Max. Substrate Width: |
1350mm |
Max. Substrate Thickness: |
50μm |
Max. Unwind Diameter: |
500mm |
Max. Rewind Diameter: |
300mm |
Min. Slitting Width: |
40mm |
Max. Working Speed: |
150m / Min |
Dimension: |
2650x2200x1550mm |
Color: |
White Or Customized |
Power Supply: |
380V 50Hz 3Phase |
Unwinding Core: |
500mm-1500mm Length |

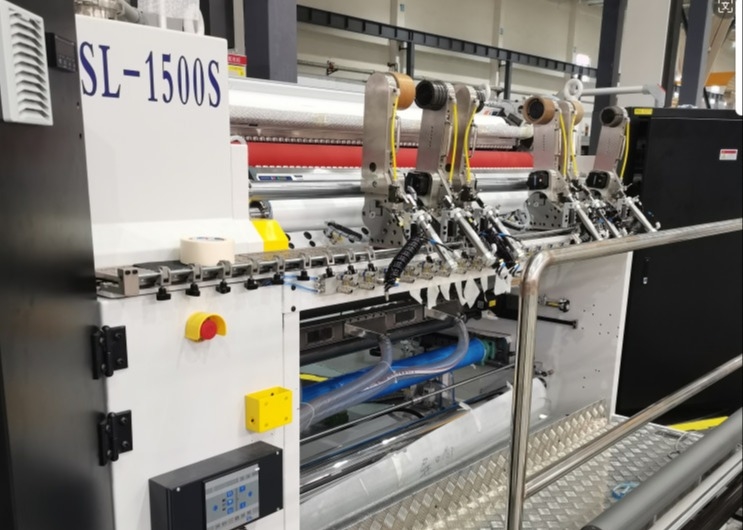

DSL Series Slitting Rewinder Machine
DSL-1500 high-performance CNC Slitting Rewinder Machine is professionally used for materials such as lithium-ion battery separators.
-Horizontal movement and front-end winding mode
-A large touch screen human-machine operating system
-Unwinding and rewinding CNC AC servo drive
-Horizontal movable electric control knife holder slitting mode straight knife standard configuration, circular knife option.
-Unwinding automatic deviation correction
-Rewinding anti-static function
After the equipment is adjusted to a level, fix it with a pressure plate and expansion bolts.
| Substrate Thickness | 7-50μm |
| Substrate Width | 500-150mm |
| Slitting width | Min. 40mm |
| Electricity | 3 phase * 380 volt *50Hz |
| Unwind diameter | max. 500mm |
| Rewind diameter | max. 300mm |
| Speed | max.150m/min |
| PLC | Germany Beckhoff |
| Operation screen | Colorful touch screen |
| Power supply | AC380V, 50Hz, 3P |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
OUR FACTORY
OUR WORKSHOP
OUR CUSTOMER
FAQ
Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q2: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.
Q3: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
