Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSL-1500
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Product Name: |
Slitting Rewinder Machine |
Substrate Width: |
500mm - 1350mm |
Max. Substrate Thickness: |
50μm |
Rewind Diameter: |
Max. 300mm |
Working Speed: |
Max. 150m Per Min |
Color: |
White |
Power Supply: |
380V 50Hz 3Phase |
Unwinding Core: |
500mm-1500mm Length |
Product Name: |
Slitting Rewinder Machine |
Substrate Width: |
500mm - 1350mm |
Max. Substrate Thickness: |
50μm |
Rewind Diameter: |
Max. 300mm |
Working Speed: |
Max. 150m Per Min |
Color: |
White |
Power Supply: |
380V 50Hz 3Phase |
Unwinding Core: |
500mm-1500mm Length |

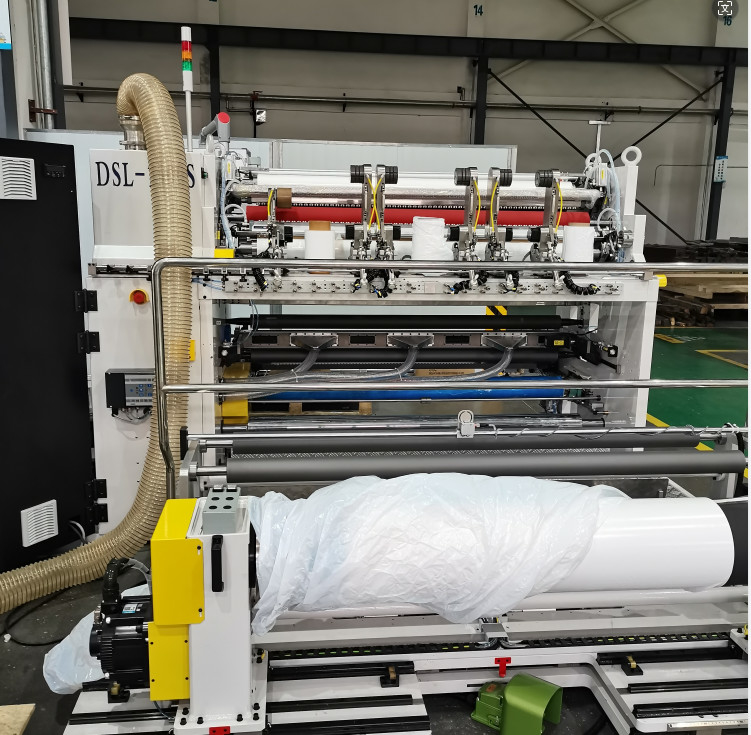

DSL Series Slitting Rewinder Machine
DSL-1500 high-performance CNC Slitting Rewinder Machine is professionally used for materials such as lithium-ion battery separators.
1) 3 phase x 380 volt x 50 Hz
2) Connected power: approx. 20 kVA
3) Average consumption: approx. 15 kW
4) Voltage variation: <±5%
1) Clean compressed air free from moisture, dirt and oil
2) Pressure (entering the device interface): Approx. 5-6 bar gauge
| Substrate Thickness | 7-50μm |
| Substrate Width | 500-150mm |
| Slitting width | Min. 40mm |
| Electricity | 3 phase * 380 volt *50Hz |
| Unwind diameter | max. 500mm |
| Rewind diameter | max. 300mm |
| Speed | max.150m/min |
| PLC | Germany Beckhoff |
| Operation screen | Colorful touch screen |
| Power supply | AC380V, 50Hz, 3P |
OUR FACTORY
OUR WORKSHOP
OUR CUSTOMER
FAQ
Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q2: Where is your factory located? Can I visit it before I place an order?
A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui, China.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q3: Payment Terms
A: TT 30% in advance, 70% before shipment.
Q4: Machine installation
A: We could assign the technician to the place for the on-site installation if requested by the purchaser.
