Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSL
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: Wooden Case
Delivery Time: Around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Product Name: |
Independent Arm Slitting Rewinder Machine |
Substrate Thickness: |
OPP Min. 3.0μm |
Cutting Width: |
Min. 4.5mm |
Cutting Adges: |
Min. 0.4mm |
Unwind Diameter: |
Max. 600mm |
Rewind Diameter: |
Max. 350mm |
Mechanical Speed: |
Max. 300m / Min |
Power Supply: |
AC380V, 50Hz, 3Phase |
Colour: |
White |
Product Name: |
Independent Arm Slitting Rewinder Machine |
Substrate Thickness: |
OPP Min. 3.0μm |
Cutting Width: |
Min. 4.5mm |
Cutting Adges: |
Min. 0.4mm |
Unwind Diameter: |
Max. 600mm |
Rewind Diameter: |
Max. 350mm |
Mechanical Speed: |
Max. 300m / Min |
Power Supply: |
AC380V, 50Hz, 3Phase |
Colour: |
White |

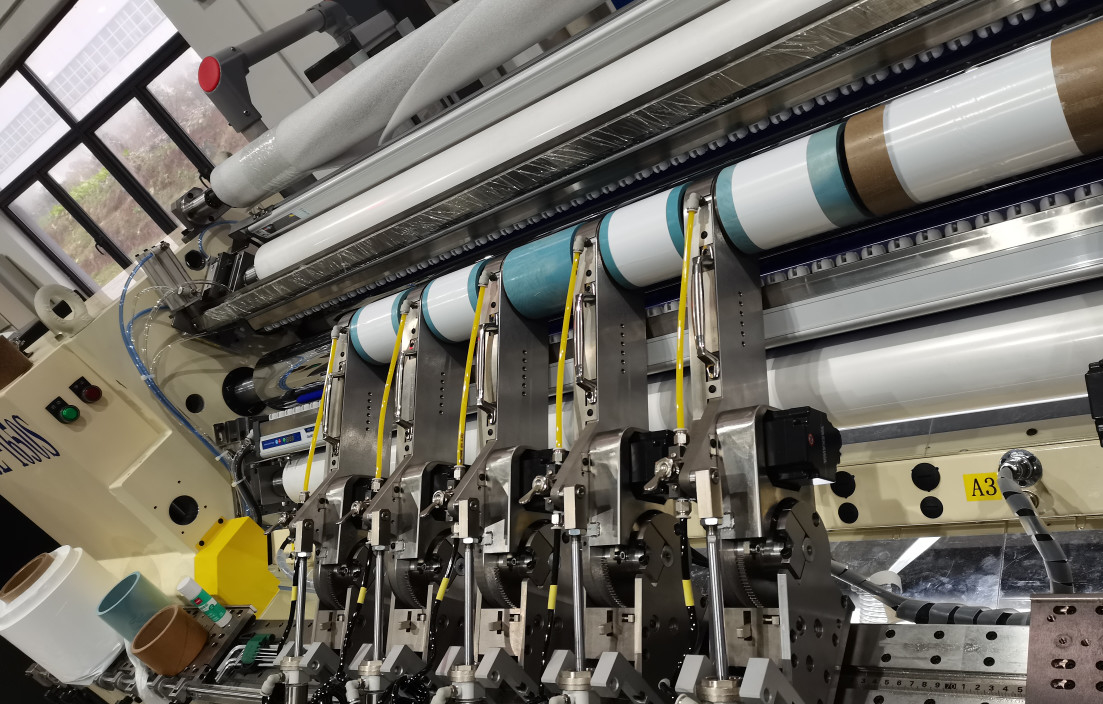

Slitter-DSI Series Independent Arm Slitting Rewinder Machine
Slitting Rewinder Machine is suitable for cutting thinner materials, supporting smaller edge cutting amount, providing higher cutting speed, and the tension control accuracy of the equipment can reach 25 ± 0.5N.
1. A horizontal movement and front-mounted rewinding method
2. Large screen touch human-machine operating system
3. One unwinding and rewinding CNC AC servo drive
4. One horizontal moving knife holder, straight knife slitting; round knife slitting (optional)
5. Automatic correction as soon as the roll is unrolled
6. One-winding and static-removing function
7. A safety protection measure
8. A reserved installation location for defect detection
(1) Minimum Thickness: OPP min.3um, , PET min.1.5um
(2) Minimum cutting width: 4.5mm
(3) Minimum cutting edge: 0.4mm
(4) Maximum unwinding diameter: 600mm
(5) Maximum rewinding diameter: 350mm
(6) Maximum mechanical design speed: 300m/min
(7) Maximum working speed: 150m/min
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q2: Where is your factory located? Can I visit it before I place an order?
A: Of course, welcome to visit our factory. Our factory is located in Hefei, Anhui,China.
Q3: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q4: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q5: Payment Terms
A: TT 30% down payment, 70% before shipment.
