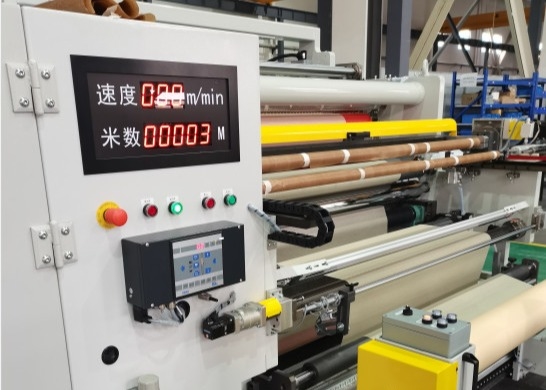

PLC Control Slitting Rewinder Machine Slitting Width Max. 400mm

Slitting Rewinder Machine

PART A: MACHINE DESCRIPTION

• Rewind section

Features: Both "Horizontal Moving Arms" are positioned in front ofthe machine.

• Slitting section

1)Razor blade cutting system

Features: Slitting cartridge moves back to the rear side of themachine on LM guides for the easy access of bladesassembly.

2) Wave cutting system (Optional)

Features: lndividual cutting unit with a separate AC servo drive

• Transport section

Main drive: Flat belt synchronization by a separate AC servo motor

• Unwind section

Features: AC servo motor driven stand arms combined with main

PART B: TECHNICAL DATA

• Winding System: Center surface winding system with dual shafts
• Slitting System: Razor blades cutting
• Substrates: OPP. 2.0mic-12mic ; PET.1.2mic- 8mic
• Substrate Width: Max. 920mm
• Slitting Widths: Min. 4 .5 mm - Max.400 mm
• Slitting Width: 4.5mm-400mm
• Unwind Diameter: Max.650 mm
• Rewind Diameter: Max.350 mm
• Working Speed: Max. 300 m/min

PART C: TECHNICAL DATA

The film - Slitting Rewinder Machine is especially designed for slitting metallized plastic films of capacitor applications.

• COMPETITIVE ADVANTAGES

1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.

• OUR WORKSHOP

• OUR CUSTOMER

• FAQ

Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.

Q2: Where is your factory located? Can I visit it before I place an order?
A: Of course, welcome to visit our factory. Our factory is located in Hefei, Anhui,China.

Q3: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
