Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSL
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: Wooden Case
Delivery Time: Around 4 months
Payment Terms: T/T
Supply Ability: 7 sets in 4 months
Product Name: |
Independent Arm Slitting Rewinder Machine |
Substrate Thickness: |
OPP Min. 3.0μm |
Cutting Adges: |
Min. 0.4mm |
Unwind Diameter: |
Max. 600mm |
Rewind Diameter: |
Max. 350mm |
Working Speed: |
Max. 150m / Min |
Certification: |
ISO 9000 |
Operation Screen: |
Colorful Touch Screen |
Logo: |
DST Or OEM |
Product Name: |
Independent Arm Slitting Rewinder Machine |
Substrate Thickness: |
OPP Min. 3.0μm |
Cutting Adges: |
Min. 0.4mm |
Unwind Diameter: |
Max. 600mm |
Rewind Diameter: |
Max. 350mm |
Working Speed: |
Max. 150m / Min |
Certification: |
ISO 9000 |
Operation Screen: |
Colorful Touch Screen |
Logo: |
DST Or OEM |

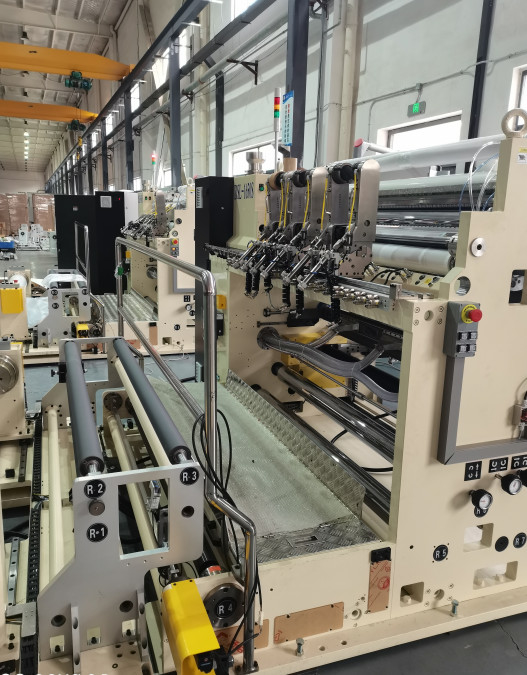

Independent Arm Slitting Rewinder Machine
Slitting Rewinder Machine is suitable for cutting thinner materials, supporting smaller edge cutting amount, providing higher cutting speed, and the tension control accuracy of the equipment can reach 25 ± 0.5N.
1. Equipped with a pneumatic shaft for unwinding and rewinding.
2. Main motor with frequency converter for speed regulation
3. The unwinding adopts magnetic brake to control tension.
4.The width of the machine and the number of blades depend on the customer.
5. Automatic unwinding and loading/unloading device (optional)
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q2: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q3: Payment Terms
A: TT 30% down payment, 70% before shipment.
Q4: Machine installation
A: We could assign the technician to the place for the on-site installation if requested by the purchaser.
