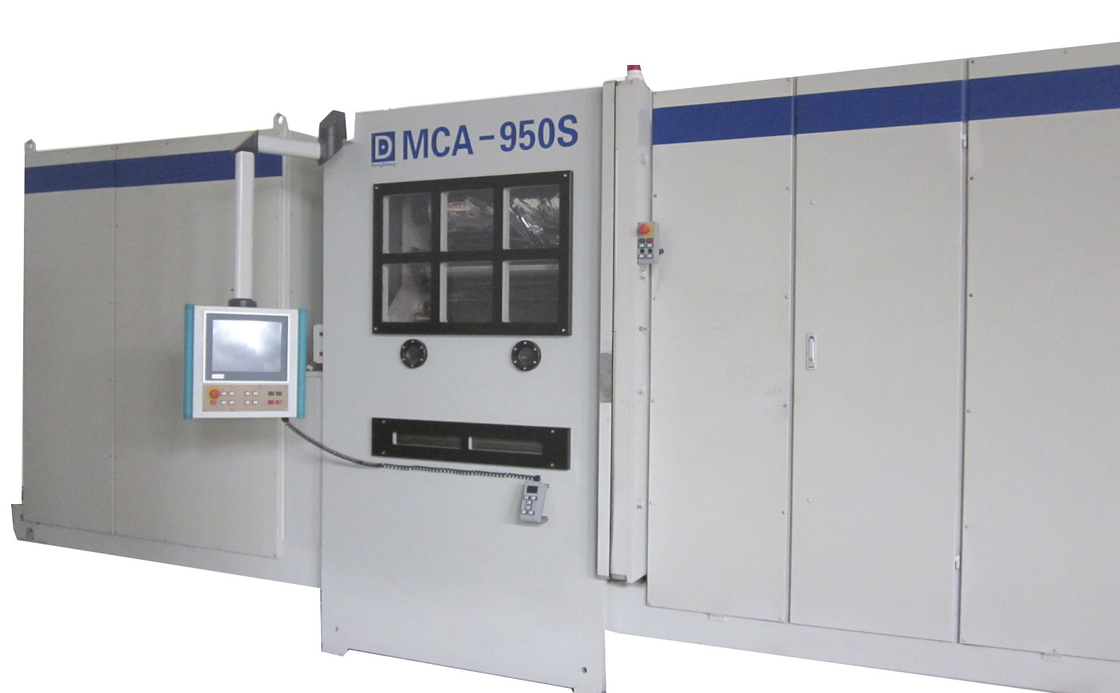

One Side Capacitor Film 1.5um Vacuum Metallizing Machine ISO9000

China Copper Metallizer Film Roll To Roll Vacuum Metallizing Machine For Capacitor Film

Product Description

-The newly designed evaporator system has high evaporation rate, good uniformity, and single-sided wire feeding.

-A programmable controller with automatic process start/stop function.

-Touch screen operation.

-The cooling and heating device is used for deep cooling of the coating drum to avoid thermal damage.

-The winding system adopts an advanced four roll four motor constant tension system, including four independent Siemens AC motors;

-Outer diameter online measurement system.

-Fault diagnosis system.

-Cold trap system.

Technical Data

 Basic Features

1. High precision winding-system:

Digital winding electronic, unwinding with transverse oszillation possible. two different rewind mode.

2. Spreader roller:

Metal straight spreader rollers for uniform tension across the total web width and uniform coating & rewinding.

3. Combined mode evaporation system for:

1)ALUMINIUM SOURCE

Thermal evaporator for resistance heated inter metallic composite. Continuous aluminium wire feed system which can be observation conveniently.

2)ZINC SOURCE

Radiation heated furnace for zinc evaporation. Nozzle plates for uniform or reinforced edge coating.

4. Advanced oil blocking system:

Advanced oil masking system for producing non-metallic stripes in the direction of web paper. Multi position high-precision remote control adjustment of the oil evaporation tube, with digital indications on the touch screen. Radiation oil heating and oil pollution prevention design.

5. Precision process control:

The industrial PC control system is based on window operation and adopts a BECKHOFF TFT touch screen. Ethernet connection facilitates remote diagnosis, data login, and software updates, and has security interlocking.

Application

Packaging & Delivery

1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Competitive Advantages

1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible  payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.

Our Factory

Our customers

FAQ

Q: Where is your factory located? Can I visit it before I place an order?

A: Of course, warmly welcome to visit our factory. Our factory is located in Hefei, Anhui,China.

Q: How about the warranty and after-sale service?

A: We provide 12 months warranty and lifetime technic suport for all machinery.

The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

Q. Payment Terms

A. TT 30% down payment, 70% before shipment.

Q. Machine installation

A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
