Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: MCA-650
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: Five sets in 4 months
Substrate: |
OPP, PET Etc. |
Substrate Width: |
500mm~1000mm |
Substrate Thickness: |
0.8μm To 12μm PET |
Power Supply: |
AC380V 50Hz + PE |
Warranty: |
One Year |
Color: |
Customized |
Speed: |
Max.1200mm |
Core Diameter: |
Φ150mm, Φ75mm |
Operation Screen: |
Colorful Touch Screen |
PLC: |
Siemens S7-400 Series |
Electricity: |
V, H2, P |
Substrate: |
OPP, PET Etc. |
Substrate Width: |
500mm~1000mm |
Substrate Thickness: |
0.8μm To 12μm PET |
Power Supply: |
AC380V 50Hz + PE |
Warranty: |
One Year |
Color: |
Customized |
Speed: |
Max.1200mm |
Core Diameter: |
Φ150mm, Φ75mm |
Operation Screen: |
Colorful Touch Screen |
PLC: |
Siemens S7-400 Series |
Electricity: |
V, H2, P |

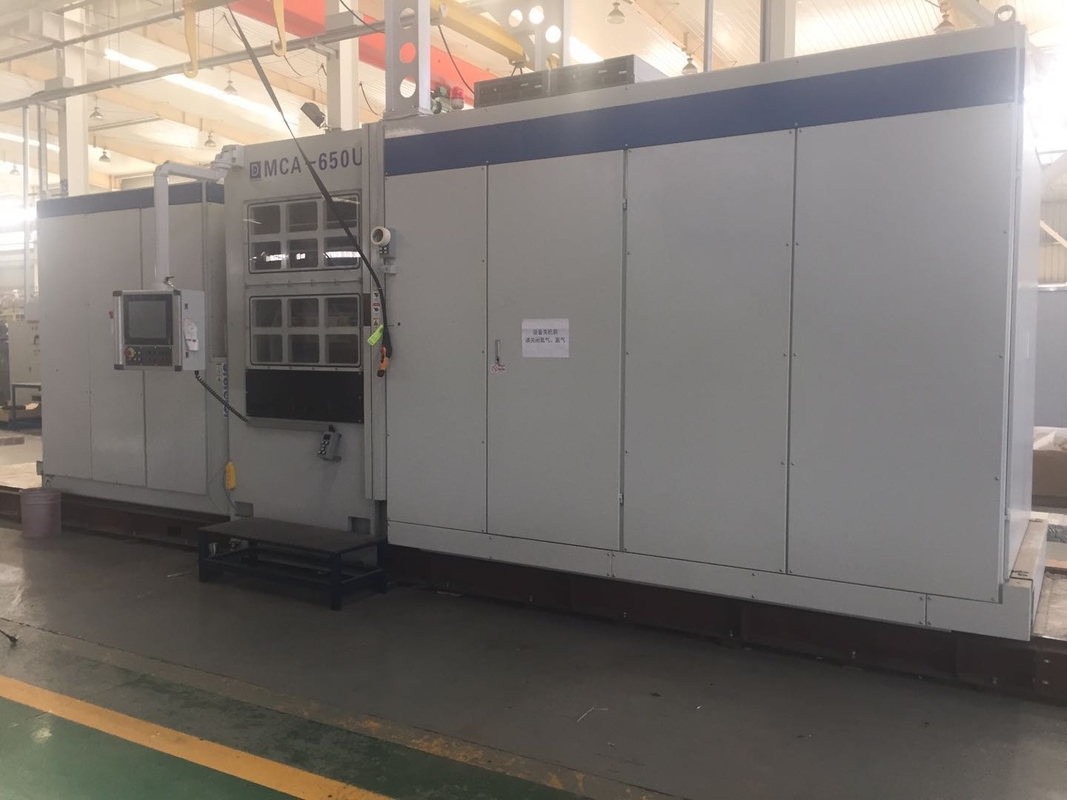

Vacuum Metalizing Plant Vacuum Coating Equipment With Plasma Treatment System For PET And OPP Films
Product Description
This is a device for heating the material to be evaporated to make it adhere to the surface of the substrate, and condensing into a film after evaporation. Its principle is to use heating and evaporation to uniformly atomize aluminum on the surface of the substrate to form an aluminum-plated film. It is mainly used in a variety of food packaging, medical packaging, and tobacco packaging.
Aluminum coating machine generally consists of three parts: vacuum system, evaporation system and winding system. Notes for use are as follows:
1. The vacuum chamber should be regularly maintained and cleaned;
2. Regularly check and maintain supporting vacuum pumps, etc .;
3. Regular machine maintenance;
4. Train operators to prevent equipment from being damaged due to misuse.
Technical Data
| Substrate | OPP, PET, etc. |
| Substrate Width | 500mm~1000mm |
| Film thickness | 0.1μm-1.5μm |
| Heating method | electricity |
| Plasma Treatment System | optional |
| Power supply | AC380V 50Hz + PE |
| Pumpdown time |
≤15 min
|
| Core diameter |
Φ150mm,Φ75mm
|
| Size |
12000mm×7000mm×4500mm
|
| Weight | 30t |
Basic Features
1. High precision winding system:
Digital wire wound electronics, can be horizontally unfolded. Two different rewind modes.
2. Spreader drum:
The metal straight spreading roller achieves uniform tension across the entire width of the coil, and achieves uniform coating and rewinding.
3. Combination mode evaporation system, used for:
1) Aluminum source
A thermal evaporator used for resistance heating of intermetallic composite materials. Continuous aluminum wire feed system for easy observation.
2) Zinc source
Radiation heating furnace for zinc evaporation. A nozzle plate used for uniform or reinforced edge coating.
4. Advanced oil blocking system:
Advanced oil masking system for producing non-metallic stripes in the direction of web paper. Multi position high-precision remote control adjustment of the oil evaporation tube, with digital indications on the touch screen. Radiation oil heating and oil pollution prevention design.
5. Precision process control:
Industrial PC Control System Based on Windows Operation
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Our Factory
Our customers
FAQ
Q:Where is your factory located? Can I visit it before I place an order?
A: Of course, welcome to visit our factory. Our factory is located in Hefei, Anhui,China.
Q: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
