Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: MPA
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: Five sets in 4 months
Substrate: |
PET, CPP, BOPP PAPER Etc. |
Substrate Width: |
500mm-1000mm |
Substrate Thickness: |
OPP: 2.0μm-15μm ; PET: 0.8μm-12μm |
Roll Diameter: |
Max. 600mm |
Speed: |
Max.1200/min |
Warranty: |
One Year |
Logo: |
DST |
Management Certification: |
ISO 9000 |
Substrate: |
PET, CPP, BOPP PAPER Etc. |
Substrate Width: |
500mm-1000mm |
Substrate Thickness: |
OPP: 2.0μm-15μm ; PET: 0.8μm-12μm |
Roll Diameter: |
Max. 600mm |
Speed: |
Max.1200/min |
Warranty: |
One Year |
Logo: |
DST |
Management Certification: |
ISO 9000 |

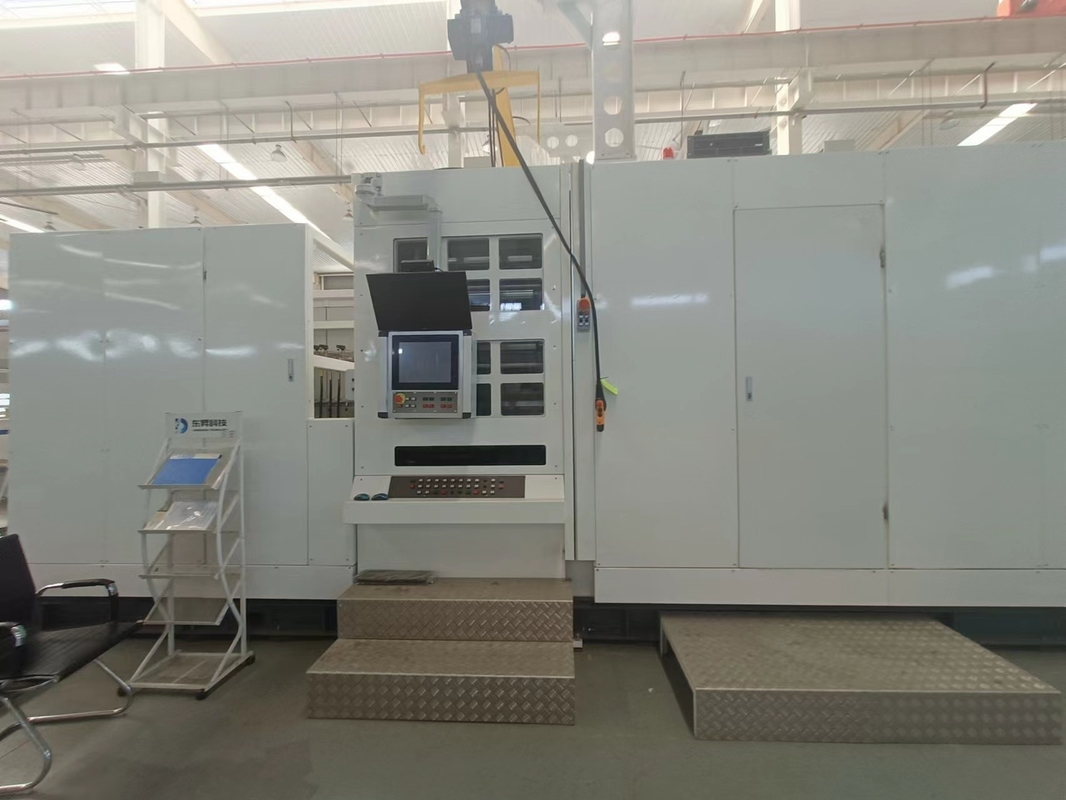

High Performance Vacuum Winding Coating Machine
Product Description
The high Performance vacuum winding coating equipment is professionally applied to package grade PET, CPP, BOPP, cigarette wrap paper, non-woven fabric and other materials for steaming aluminum, copper or non-metallic coating, forming packaging grade metallized films and cigarette wrap paper, beer labels, decorative paper foil and other products.
Technical Data
Substrate Material & Date
| Substrate material | range of thickness |
| PET | 1.5 m - 12 m |
| OPP | 3.0 m - 15 m |
Roll Dimensions
| Roll width | max. 920mm |
| Roll diameter | max. 600 mm |
| Core diameter (inside) | 76 mm or 152 mm |
| Core material | metal, plastic, impregnated paper |
Basic Features
1. High precision winding-systerm
2.Spreader roller
3.Combined mode evaporation system for: aluminum source; zinc source; advanced oil masking system
4. Advanced oil masking system
5. Precision precess control
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Our Factory
Our customers
FAQ
Q:Where is your factory located? Can I visit it before I place an order?
A: Of course, welcome to visit our factory. Our factory is located in Hefei, Anhui,China.
Q: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
