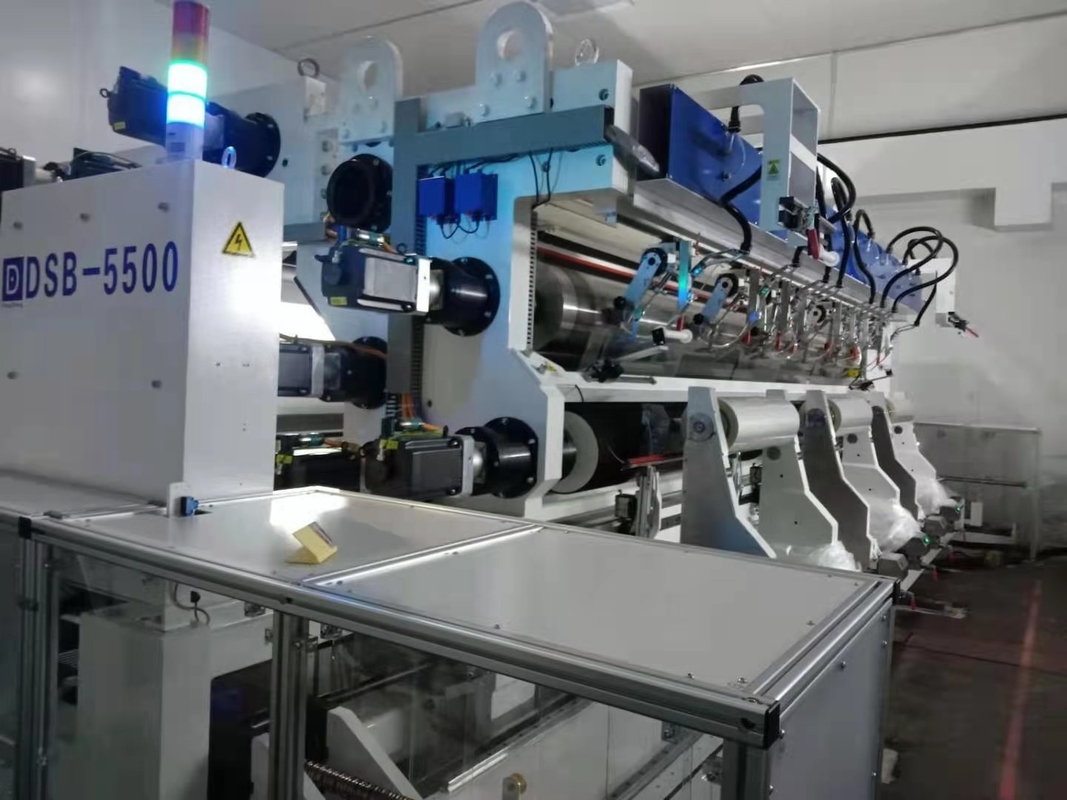

Siemens PLC Control 1500mm Grey Slitting Rewinder Machine With PP PE Substrate

 Slitting Rewinder Machine optical films

Product Description

A. Unwinding system

1) Type: shaftless pneumatic clamping, suitable for 5.6m long and 450mm diameter steel coil core.

2) Unwinding diameter: maximum 1000mm, maximum bearing 5000kg

3) Core clamping: it is clamped by shaftless cylinder, and there are core transition platform supports at both ends of unwinding, which is convenient for coil changing.

4) Unwinding swing: automatic film swing, swing adjustable, stroke + / - 100 mm, swing speed can be ultra-low speed adjustment

5) Rewinding and deviation correction rewinding has deviation correction function, automatic + manual switchable, deviation correction range is + / - 75 mm

6) Tension control: 80n-500n, floating roller and servo motor for tension control

7) Film direction: up and down film direction can be adjusted

8) De static device: a group of de static device is equipped near the floating roll

A. Unwinding system
1) Type: Shaftless pneumatic clamping, suitable for steel coil cores with a length of 5.6m and a diameter of 450mm.
2) Unwinding diameter: maximum 1000mm, maximum load-bearing capacity 5000kg
3) Core clamping: It is clamped by a non axis cylinder, and the two ends of the unwinding are supported by a core clamping transition platform, making it easy to change the roll.
4) Unwinding swing: automatic film swing, adjustable swing, travel+/-100mm, swing speed can be adjusted at ultra-low speed
5) Rewinding and correction Rewinding has a correction function, which can be automatically and manually switched, with a correction range of+/-75 mm
6) Tension control: 80n-500n, floating roller and servo motor used for tension control
7) Film direction: adjust up and down film direction
8) Static electricity removal device: There is a set of static electricity removal devices near the floating roller

Characteristic

Technical Data

Competitive Advantages

1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.

Packaging & Delivery

1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Factory Introduction

Dongheng(dswintec.com) located in HeFei city and SuZhou city, Dongsheng M&E Tech Co.,Ltd. is a well-known manufacturer of functional-film equipments. The company specializes in manufacturing vacuum coating machines, splitting machines, rewinding machines, bidirectional film-pulling machines, and other related equipments, for fields of electronic films, lithium battery separators, optical films, packing films, cooper/aluminum foil and others.

Dongsheng is also equipped with well-qualified R&D personnel,and experienced mechanical and electrical application engineers. Oriented to customers requirements and satisfaction, Dongsheng is dedicated to provide integrated solutions for designing & manufacturing,upgrading & reconstruction for used equipments, process designing, equipment installation, technical consultation,and personnel training, from single devices to whole production lines.

With excellent products and efficient services, DONGSHENG is obtaining more and more satisfaction and support from users at home and abroad.

FAQ

Q: Is Dongsheng a factory or trading company?

A: Dongsheng is a factory.

Q:Where is your factory located? Can I visit it before I place an order?

A: Of course, welcome to visit our factory. Our factory is located in Hefei, Anhui,China.

Q: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.

Q. Payment Terms

A. TT 30% down payment, 70% before shipment.

Q: How about the warranty and after-sale service?

A: We provide 12 months warranty and lifetime technic suport for all machinery.

The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
