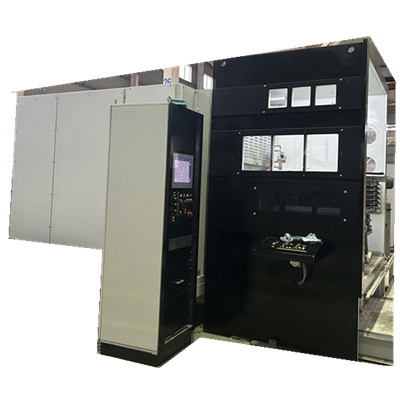

Aluminum Coating 12 Micron Vacuum Deposition Machine Gold Plating

Micron Aluminum Coating Machine 12 Micron Vacuum Deposition Machine Gold Plating Machine

Micron Aluminum Coating Machine 75mm Vacuum Deposition Systems Vacuum Metalizer

Aluminium Metalizing Machine Vacuum Coating Equipment CPP Substrate

The magnetron sputtering coil coater is a multifunctional roll designed by our company using the internationally advanced magnetron sputtering technology
Winding coating equipment. The equipment adopts modular design idea. According to customer requirements, it can be used in flexible materials (such as OPP, PET, PI
Copper foil, aluminum foil, etc.) are sprayed with different materials (such as gold, silver, copper, aluminum, nickel, ceramics, etc.) at the same time.

Option:

Advantages of magnetron sputtering coating:
High deposition rate.
The temperature rise of substrate is small.
There is no limit to the shape of the target, which is easy to design to ensure uniformity.
It has a wide range of applications. Almost all metal, alloy and ceramic materials can be made into targets.
The film is free of splashing particles and other problems

Technical Data

 Basic Features

1. High precision winding-system:

Digital winding electronic, unwinding with transverse oszillation possible. two different rewind mode.

2. Spreader roller:

Metal straight spreader rollers for uniform tension across the total web width and uniform coating & rewinding.

3. Combined mode evaporation system for:

1)ALUMINIUM SOURCE

Thermal evaporator for resistance heated inter metallic composite. Continuous aluminium wire feed system which can be observation conveniently.

2)ZINC SOURCE

Radiation heated furnace for zinc evaporation. Nozzle plates for uniform or reinforced edge coating.

4. Advanced oil masking system:

Advanced oil masking system for the production of unmetallised stripes in web direction. Multi-position high precision remote controlled adjustment of the oil-evaporator tube with digital indication on the touch screen. Radiation oil heating & oil pollution preventive design.

5. Precision process control:

Industry PC control system base on windows operation with BECKHOFF TFT touch screen. Ethernet connection for easy remote diagnostic, data loging and software update and with safety interlocking.

Application

Packaging & Delivery

1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Competitive Advantages

1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible  payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.

Our Factory

Our customers

FAQ

Q: Is Dongsheng a factory or trading company?

A: Dongsheng is a factory.

Q:Where is your factory located? Can I visit it before I place an order?

A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.

Q: How about the warranty and after-sale service?

A: We provide 12 months warranty and lifetime technic suport for all machinery.

The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

Q. Payment Terms

A. TT 30% down payment, 70% before shipment.

Q. Machine installation

A. We could assign the technician to the place for the on-site installation if requested by the purchaser.

Q: How do you control your quality?
A: Each process will be tested by our inspection department to make sure the product quality.
