Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: MCA-950S
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 6 months
Payment Terms: T/T
Supply Ability: Five sets in 6 months
Substrate: |
Aluminum |
Substrate Width: |
Max.1200mm |
Substrate Thickness: |
0.1μm-1.5μm |
Coating Material: |
Al.only;Zn.,Al. |
Heating Method: |
Evaporation Boat |
Power Supply: |
AC380V 50Hz + PE |
Core Diameter (inside): |
76 Mm Or 152 Mm |
Core Material: |
Metal, Plastic, Impregnated Paper |
Coating Speed: |
Max. 18 M/s |
Coating: |
Vacuum Coating |
Supply Ability: |
20 Sets Per Year |
Substrate: |
Aluminum |
Substrate Width: |
Max.1200mm |
Substrate Thickness: |
0.1μm-1.5μm |
Coating Material: |
Al.only;Zn.,Al. |
Heating Method: |
Evaporation Boat |
Power Supply: |
AC380V 50Hz + PE |
Core Diameter (inside): |
76 Mm Or 152 Mm |
Core Material: |
Metal, Plastic, Impregnated Paper |
Coating Speed: |
Max. 18 M/s |
Coating: |
Vacuum Coating |
Supply Ability: |
20 Sets Per Year |

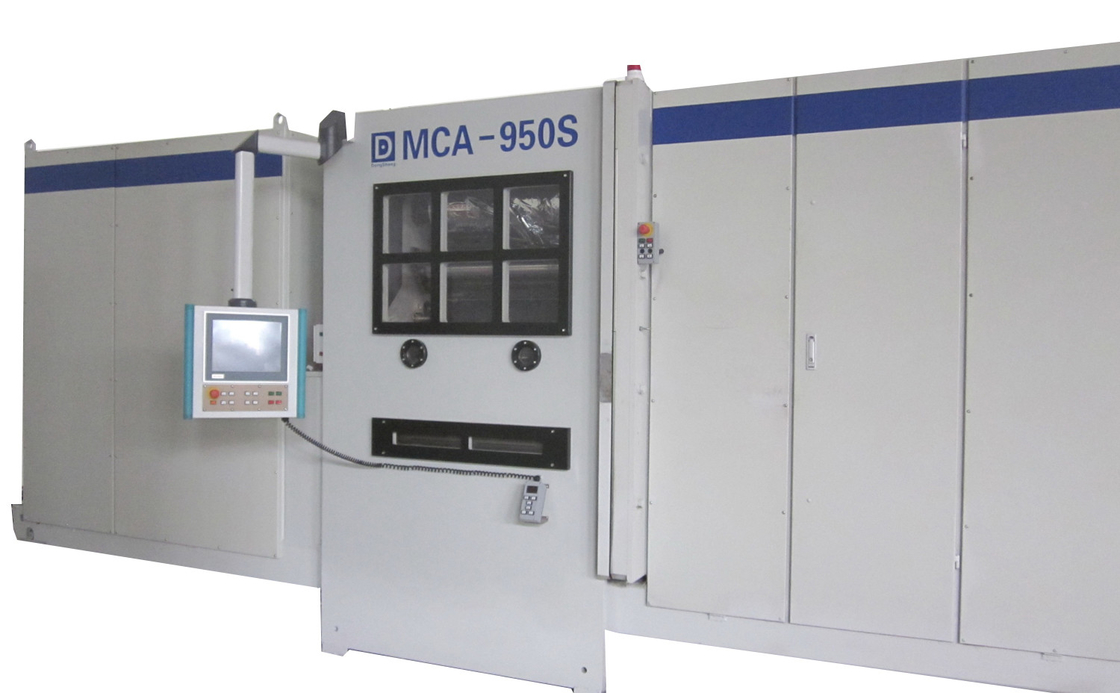

Vacuum Metallizing Machine For High Quality OPP PET Films High Performance Roll To Roll Metallizer
Product Description
The herein specified high vacuum web coating system type MCA-950S is especially designed for the one side coating of flexible web materials with metallic layers. The metallic layer can be either Aluminum only or Zinc/ Aluminium. The metallised materials are used for the production of dielectric film capacitors.
Technical Data
| Substrate | OPP,PET,PI,etc. |
| Substrate Width | max.1200mm |
| Substrate thickness | 0.1μm-1.5μm |
| Heating method | Evaporation boat |
| Power supply | AC380V 50Hz + PE |
| Coating material |
metal, plastic, impregnated paper
|
| Core diameter (inside) |
76 mm or 152 mm
|
| Coating material |
Al.only;Zn.,Al.
|
|
Kind of coating |
One side |
Basic Features
1. High precision winding-system:
Digital winding electronic, unwinding with transverse oszillation possible. two different rewind mode.
2. Spreader roller:
Metal straight spreader rollers for uniform tension across the total web width and uniform coating & rewinding.
3. Combined mode evaporation system for:
1)ALUMINIUM SOURCE
Thermal evaporator for resistance heated inter metallic composite. Continuous aluminium wire feed system which can be observation conveniently.
2)ZINC SOURCE
Radiation heated furnace for zinc evaporation. Nozzle plates for uniform or reinforced edge coating.
4. Advanced oil masking system:
Advanced oil masking system for the production of unmetallised stripes in web direction. Multi-position high precision remote controlled adjustment of the oil-evaporator tube with digital indication on the touch screen. Radiation oil heating & oil pollution preventive design.
5. Precision process control:
Industry PC control system base on windows operation with BECKHOFF TFT touch screen. Ethernet connection for easy remote diagnostic, data loging and software update and with safety interlocking.
Application
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
