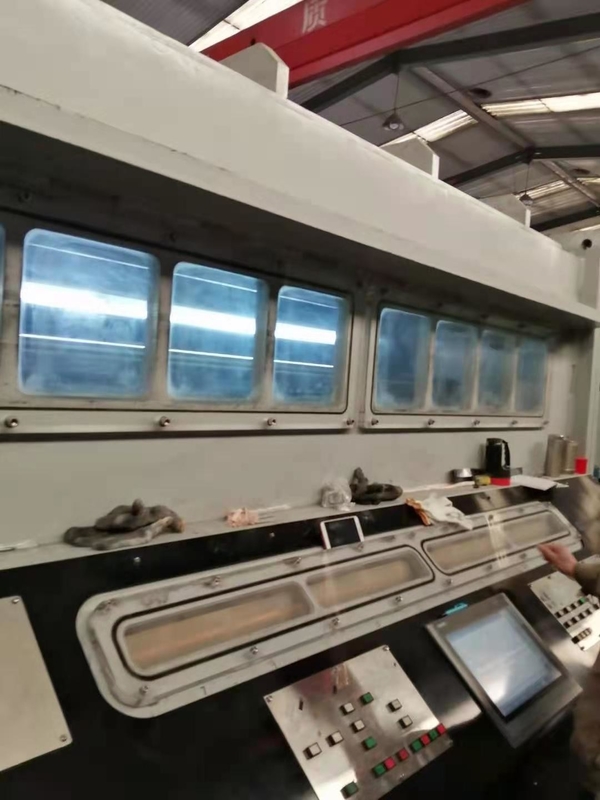

PET Film 6 Micron 500N Vacuum Deposition Machine , Vacuum Deposition Systems

Functional Vacuum Deposition Machine MCP-2000 Used For Copper Material

Product Description

The plant is designed for the production of polymer metal multilayer material. The specification outlined below is a guide that the vacuum equipment contractor may integrate with his standard methods of design and fabrication to minimize customization and cost. Major design elements in this chamber will include the following:

• The system is designed based on a 1.6m metallizing zone web system.
• The plant process is performed on a rotating drum by depositing 1000s of metal and polymer layers. In order to set the thickness of the metal layer, a short length of PET web is first run through the system to measure and set the OD of the metal layer and uniformity across the 1.6m deposition zone. Once this is done the boat box shutter is closed, the PET film is fully wound (no film on the drum), the polymer deposition is initiated on the drum and the shutter is re-opened.
• The diameterof the process drum is 1.2m, to facilitate the plant process and various equipment that is placed around the drum.
• The system has four vacuum separation zones.
• The web system and the process drum is placed on a cart that move out of the chamber along with the OD monitor. The zone separation sheet metal partitions will stay in the chamber.

Technical Data

 Basic Features

1. Vacuum Chamber

2. Pumping Group

3.Winding System

4. Process Drum

5. Polycold System

6. Metal Evaporation System

7. Optical Density System

8. Cooling Water Manifold

9. Electrical Cabinet And Operator Panel

10. Machine Management And Control

11. Trouble Shooting

12. Supervisor Mode

Packaging & Delivery

1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.

Competitive Advantages

1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible  payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.

Our Factory

FAQ

Q: Is Dongsheng a factory or trading company?

A: Dongsheng is a factory.

Q:Where is your factory located? Can I visit it before I place an order?

A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.

Q: How about the warranty and after-sale service?

A: We provide 12 months warranty and lifetime technic suport for all machinery.

The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.

Q. Payment Terms

A. TT 30% down payment, 70% before shipment.

Q. Machine installation

A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
