Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: MCA
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: Five sets in 4 months
Substrate: |
OPP,PET,etc. |
Substrate Width: |
500mm-1000mm |
Substrate Thickness: |
OPP:2.0μm-15μm ; PET:0.8μm-12μm |
Roll Diameter: |
Max.600mm |
Speed: |
Max.1200/min |
Warranty: |
12 Months |
Substrate: |
OPP,PET,etc. |
Substrate Width: |
500mm-1000mm |
Substrate Thickness: |
OPP:2.0μm-15μm ; PET:0.8μm-12μm |
Roll Diameter: |
Max.600mm |
Speed: |
Max.1200/min |
Warranty: |
12 Months |

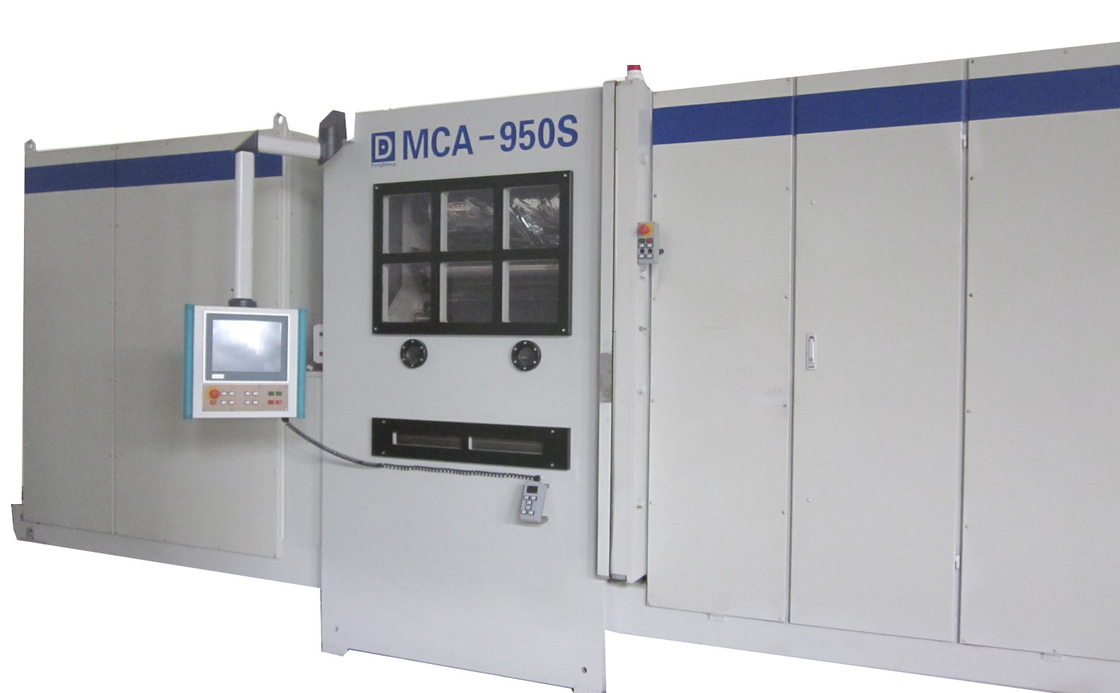

High Performance Vacuum Coating Machine Designed For The One Side Coating Of Flexible Web Materials
Product Description
The herein specified high vacuum web coating system is especially designed for coating of flexible web materials with metallic layers. The metallic layer can be either Aluminum only or Zinc/ Aluminium. The metallised materials are used for the production of dielectric film capacitors.
Technical Data
Substrate Material & Date
| Substrate material | range of thickness |
| PET | 1.5 m - 12 m |
| OPP | 3.0 m - 15 m |
Roll Dimensions
| Roll width | max. 920mm |
| Roll diameter | max. 600 mm |
| Core diameter (inside) | 76 mm or 152 mm |
| Core material | metal, plastic, impregnated paper |
Basic Features
1. High precision winding-systerm
2.Spreader roller
3.Combined mode evaporation system for: aluminum source; zinc source; advanced oil masking system
4. Advanced oil masking system
5. Precision precess control
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery. We have professional after-sale technical team, we can solve problems in time.
