Product Details
Place of Origin: China
Brand Name: DST
Certification: SGS
Model Number: DSP
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: Based on Specification
Packaging Details: wooden case
Delivery Time: around 4 months
Payment Terms: T/T
Supply Ability: Five sets in 4 months
Substrate: |
PI Films |
Substrate Width: |
500-1500mm |
Substrate Thickness: |
6.0-30um |
Speed: |
Max.300m/min |
Knife: |
Circular/straight Knife |
Electricity: |
3 Phase * 200 Volt *60Hz |
Color: |
OEM |
Warranty: |
1 Year |
Function: |
Translational & Prefixal Rewinding |
Substrate: |
PI Films |
Substrate Width: |
500-1500mm |
Substrate Thickness: |
6.0-30um |
Speed: |
Max.300m/min |
Knife: |
Circular/straight Knife |
Electricity: |
3 Phase * 200 Volt *60Hz |
Color: |
OEM |
Warranty: |
1 Year |
Function: |
Translational & Prefixal Rewinding |

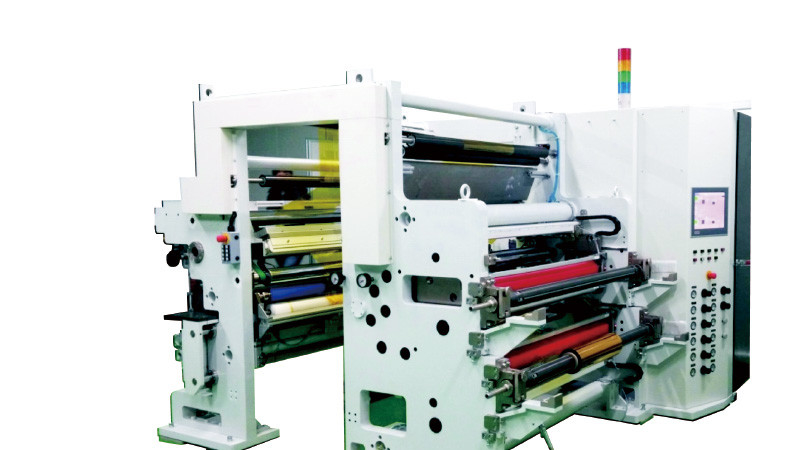

DSP series slitting-rewinder is used for optical films.
Product Description
1. The touch screen should be equipped with a protective cover and the function of tag out and lock out;
2. When the equipment is in the maintenance mode, the equipment can't move, and any operation buttons of the equipment are not available during the maintenance process, so as to avoid the personnel operating the equipment during the maintenance process. This mode is similar to the function of equipment emergency stop, and you need to enter a password to exit the maintenance mode;
3. 1 - equipment operation requires three levels of authority; operator authority can modify some basic parameters;
2 - Engineer's authority to modify important parameters;
The highest authority, can modify key parameters
4. Winding diameter alarm stop function;
5. The equipment part realizes the function of belt break alarm and shutdown;
6. The vulnerable parts of the equipment (roll, cot, etc.) should have the function of life alarm; the winding and pressing roll can not.
7. For compressed air, the function of pressure sensing and low pressure alarm should be added;
8. Belt, gear, chain and other moving and dangerous parts need to have safety protection measures and standard safety warning signs;
9. The door of the equipment transmission cabinet shall be equipped with double door forbidding switch, which will open the door and give an alarm when the equipment stops in normal operation;
10. Grounding wires of all protective doors;
11. The emergency stop switch is in a conspicuous and easily accessible position;
12. The emergency stop switch shall be equipped with a protective ring to prevent injury caused by accidental touch;
13. Press the emergency stop switch to stop the equipment;
Features
Technical Data
| Substrate | PI films |
| Substrate Width | 500-1500mm |
| Substrate thickness | 6.0-30μｍ |
| Electricity | 3 phase * 200 volt *60Hz |
| Unwinding diameter | max. 1000mm |
| Speed | max.500m/min |
| PLC | Beckhoff Germany |
| Operation screen | Colorful touch screen , HMI |
| Power supply | AC380V, 50Hz,three phase current |
| Place of Origin | Hefei, China |
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Factory Introduction
Dongheng(dswintec.com) located in HeFei city and SuZhou city, Dongsheng M&E Tech Co.,Ltd. is a well-known manufacturer of functional-film equipments. The company specializes in manufacturing vacuum coating machines, splitting machines, rewinding machines, bidirectional film-pulling machines, and other related equipments, for fields of electronic films, lithium battery separators, optical films, packing films, cooper/aluminum foil and others.
Dongsheng is also equipped with well-qualified R&D personnel,and experienced mechanical and electrical application engineers. Oriented to customers requirements and satisfaction, Dongsheng is dedicated to provide integrated solutions for designing & manufacturing,upgrading & reconstruction for used equipments, process designing, equipment installation, technical consultation,and personnel training, from single devices to whole production lines.
With excellent products and efficient services, DONGSHENG is obtaining more and more satisfaction and support from users at home and abroad.
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q. Payment Terms
A. TT 30% down payment, 70% before shipment.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
